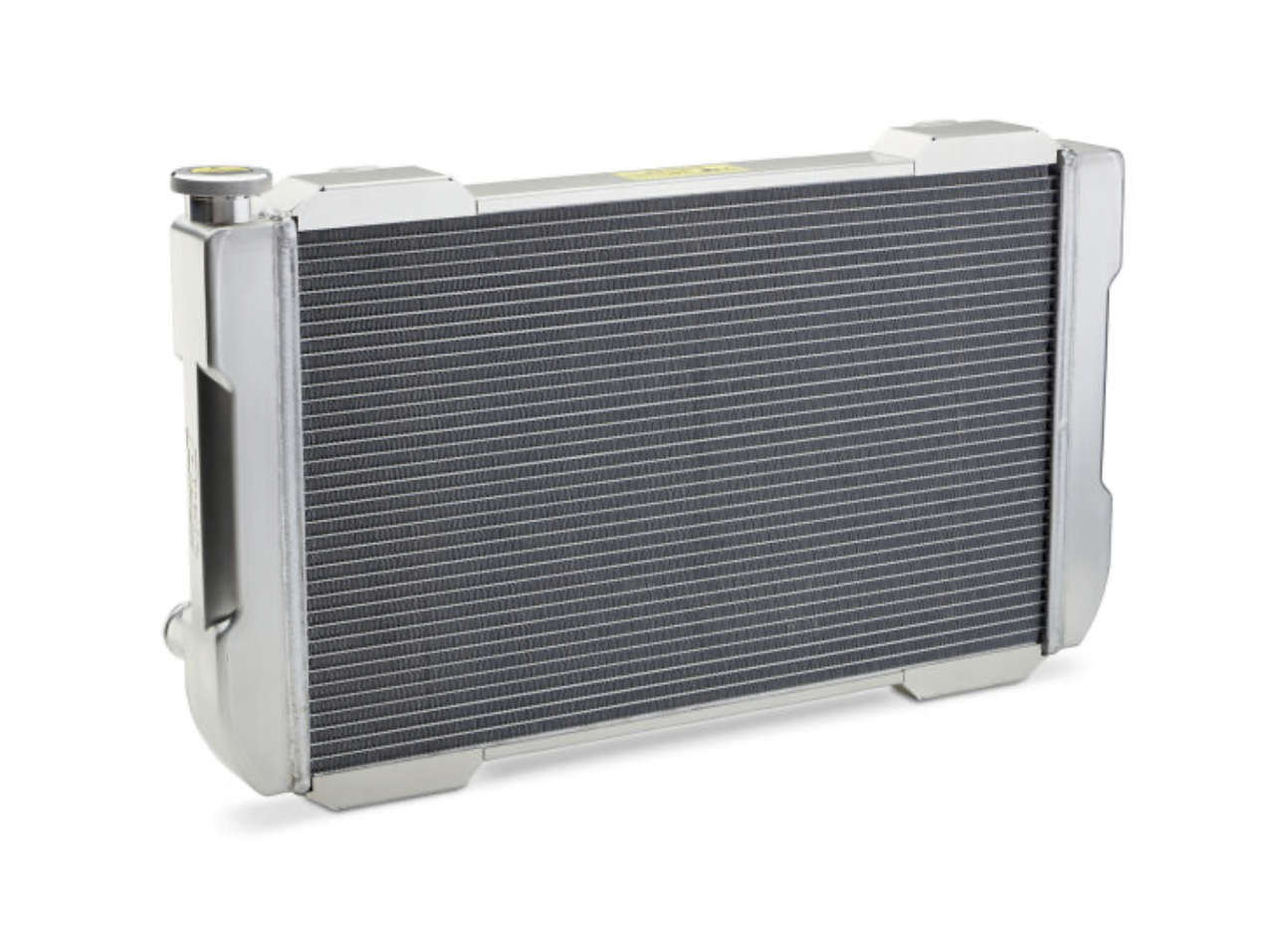

1-2-3 Radiator System – Universal LS Engine – Manuel Transmission – Inlet Passenger Side / Outlet Driver Side – 26" Core
SKU 126LB20
C$843.00
In stock: 1 available
1
Save this product for later
1-2-3 Radiator System – Universal LS Engine – Manuel Transmission – Inlet Passenger Side / Outlet Driver Side – 26" Core
Product Details
Brand: Proform
MPN: 126LB20
Complete, preassembled aluminum cooling system from PROFORM’s 1-2-3 Series, designed specifically for LS engine conversions. This system combines a TIG-welded radiator, dual electric fans, aluminum shroud, and adjustable thermostat into a single high-performance package, delivering both maximum cooling and a professional appearance.
• Cap Color: Silver
• Cap Included: Yes
• Core Width: 26"
• Core Thickness: 2.4"
• Overall Width: 31.1"
• Height: 18"
• Thickness: 5.40"
• Inlet: 1.5" diameter, driver side
• Outlet: 1.5" diameter, passenger side
• Transmission: Manual
• Construction: All aluminum, natural finish
• Electric Fans Included: Yes
• Fans: Dual 12", 2400 CFM total, brushed motors
• Shroud Included: Yes
• Max Horsepower: 800 HP
• Mounting Style: Universal – Conversion
• Voltage: 12V
Included:
• Single-pass aluminum radiator with TIG-welded fabricated tanks
• Low-profile aluminum shroud
• Dual 12" high-output electric fans (2400 CFM total)
• Thread-in adjustable thermostat
• Billet aluminum radiator cap (silver)
• Overflow tube with integrated filler neck
• Fully assembled and ready to install
• 100% new components—never refurbished
• Purpose-built for LS conversions requiring maximum cooling capacity
