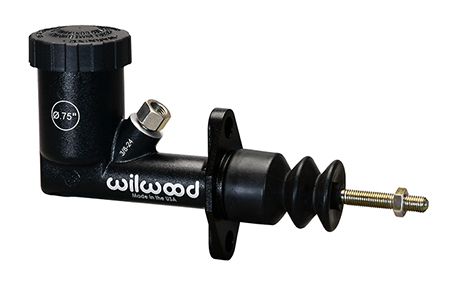

GS Compact Integral Master Cylinder, 3/4 Inch Bore
+2

GS Compact Integral Master Cylinder, 3/4 Inch Bore

SKU 26015098
C$138.15
In stock: 1 available
1
Save this product for later
Share this product with your friends
ShareSharePin it
GS Compact Integral Master Cylinder, 3/4 Inch Bore
Product Details
Brand: Wilwood Disc Brakes
MPN: 260-15098
Unit of Measure: Sold each
Ships to Canada Only: Due to tariffs, this item cannot be shipped to the US.

Compact single-outlet master cylinder designed for space-limited brake system applications where precise pressure control and reliable operation are required. This GS series master cylinder features a rebuildable design with a high-pressure die-cast aluminum body and a durable black E-coat finish. The integral reservoir uses an internal bellows-style cap to maintain a positive seal and consistent fluid control.

A refined internal return spring and piston assembly provide smooth operation, positive pressure control, and quick, complete release, making this master cylinder well suited for manual brake systems in custom and performance applications.

• Compact integral reservoir master cylinder
• Bore size: 3/4 inch
• Single outlet design
• Rebuildable construction
• High-pressure die-cast aluminum body
• Black E-coat finish
• Integral reservoir with internal bellows-style cap
• Designed for precise pressure control and quick release

Specifications:
• Bore size: 3/4 inch
• Piston area: 0.440 in²
• Stroke: 1.25 inches
• Fluid volume: 0.55 cu in
• Reservoir type: Integral
• Reservoir capacity: 1.5 oz (2.7 cu in)
• Overall length: 7.99 inches
• Flange to end length: 3.96 inches
• Outlet size: 3/8-24 IF female
• Material: Aluminum
