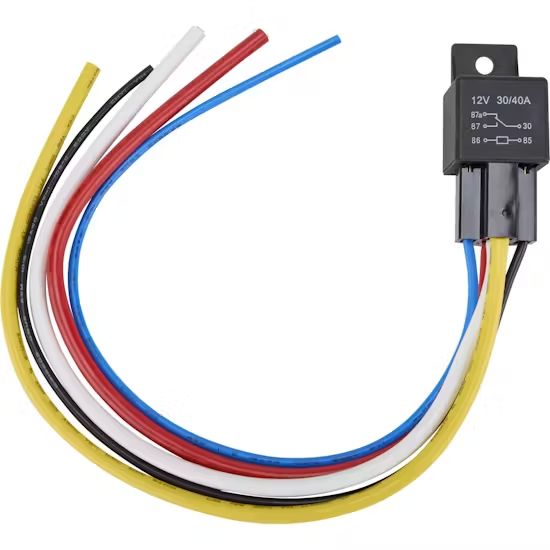

40-Amp Electric Relay Kit
SKU 91064044
C$23.14
In stock: 8 available
1
Save this product for later
40-Amp Electric Relay Kit
Product Details
Brand: Speedway
MPN: 91064044
Unit of Measure: Sold each
Ships to Canada Only: Due to tariffs, this item cannot be shipped to the US.
Universal electric relay kit designed to simplify wiring for common 12-volt accessories in street rods, customs, and performance vehicles. This kit is suitable for powering electric fans, fuel pumps, horns, shaved door handle solenoids, and other switched accessories. Includes the relay, plug, wiring, and instructions for straightforward installation.
• 12-volt electric relay kit
• Rated at 40 amps
• Suitable for electric fans, fuel pumps, horns, door poppers, and similar accessories
• Includes relay, plug, wiring, and installation instructions
• Compact, budget-friendly solution for accessory wiring
Wiring configuration (as labeled in kit):
• Red wire, terminal 30: main 12V power source
• Black wire, terminal 85: fan sensor, low oil pressure switch, or ground switch
• Blue wire, terminal 86: 12V toggle switch or ignition ACC terminal
• Yellow wire, terminal 87: output to fan or fuel pump positive lead
• White wire or center terminal: not normally used
