Air Spring Axle Bracket
Product Details
Brand: Welder Series
MPN: 21870
Thickness: 3/16"
Hole size: 3/8"
Buy 10 of one part number, get 10% off.
Buy 40+ to get them for 40% off! Sorry, no additional discounts applicable.
Mounts many rear air springs.

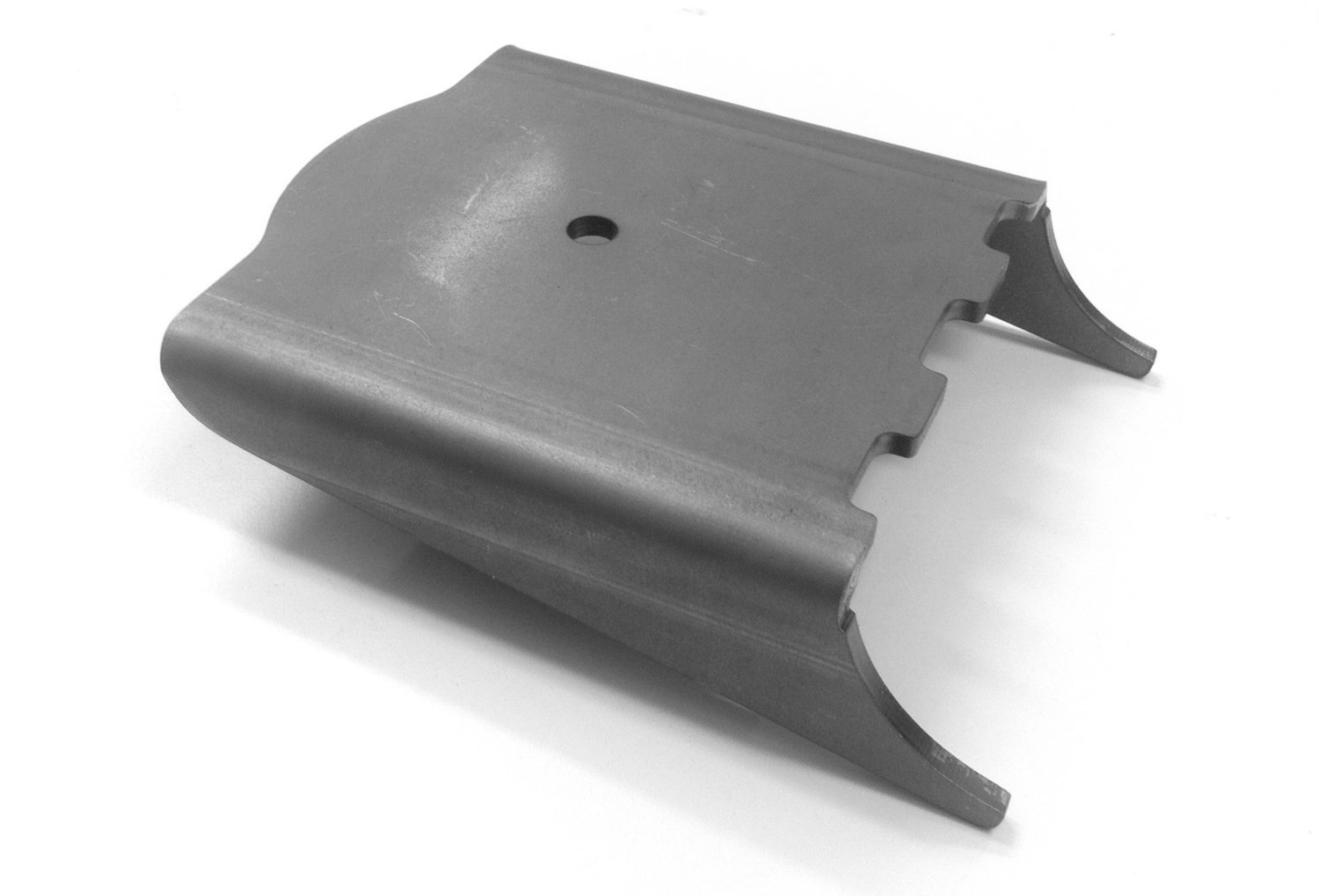

Air spring axle bracket, for #F9000 and similar air springs. Formed to weld to a 3″ diameter axle tube but will easily fit smaller or larger tubes. The edge that welds lengthwise to the axle tube is scalloped to reduce heat build-up when welding. The air spring mounting surface is the same height as the axle tube centerline.
This bracket can be used with the 474208 upper air spring bracket. About 5-1/4” wide with 1 hole, 3/8” diameter, 3” from the edge of the axle. The radius opposite the axle end is 2.5" from the hole centreline.
