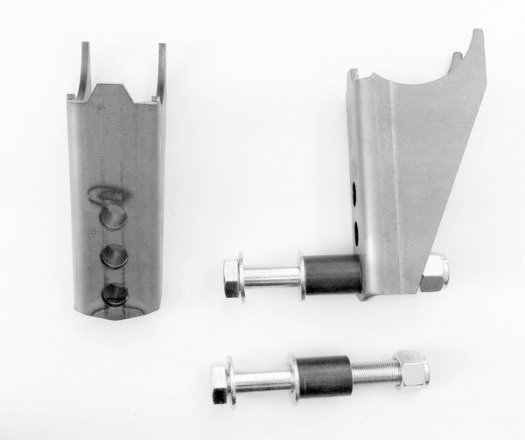

Axle Bracket Kit, for coil overs

Laser cut and CNC formed from 3/16" pickled and oiled mild steel, these heavy-duty brackets are designed to mount the lower end of your coilover shocks. Available with a bolt kit/ spacer for mounting the coilovers; please see the options to the right.

The three holes are 5/8" diameter on 1" centers. The lowest hole is 4-1/2" below the bottom of the axle tube. Made to fit 3" diameter axle tubes. Available with the coilover support blocks welded or unwelded.

Tech Tip:
You can increase the bracket's radius if you have larger tubes, or if they're smaller than 3" just use a section of heavy wall tubing that will increase the diameter (see related parts below).
