Axle Bracket, Parallel Four Link, EA, Coil Over Hole Location: Lowest hole 4-1/2" below the axle tube, Axle Tube Diameter: 3"
+4
+3
+2

Axle Bracket, Parallel Four Link, EA

Home/Store/Chassis Parts/Suspension/Rear/Component Pieces
SKU 207611
C$44.00
Bulk pricing available for quantities of 10 units or more
Axle Tube Diameter
Coil Over Hole Location
In stock
1
Buy more, save more
QuantityPrice per itemDiscount
10 itemsC$39.6010% off
40 itemsC$26.4040% off
Save this product for later
Share this product with your friends
ShareSharePin it
Axle Bracket, Parallel Four Link, EA
Home/Store/Chassis Parts/Suspension/Rear/Component Pieces
Product Details
Brand: Welder Series
MPN: 207610
Country/Region of Manufacture: Canada
Thickness: 3/16"
Bolt Size: 1/2"

Buy 10 of one part number, get 10% off.
Buy 40+ to get them for 40% off! Sorry, no additional discounts applicable.

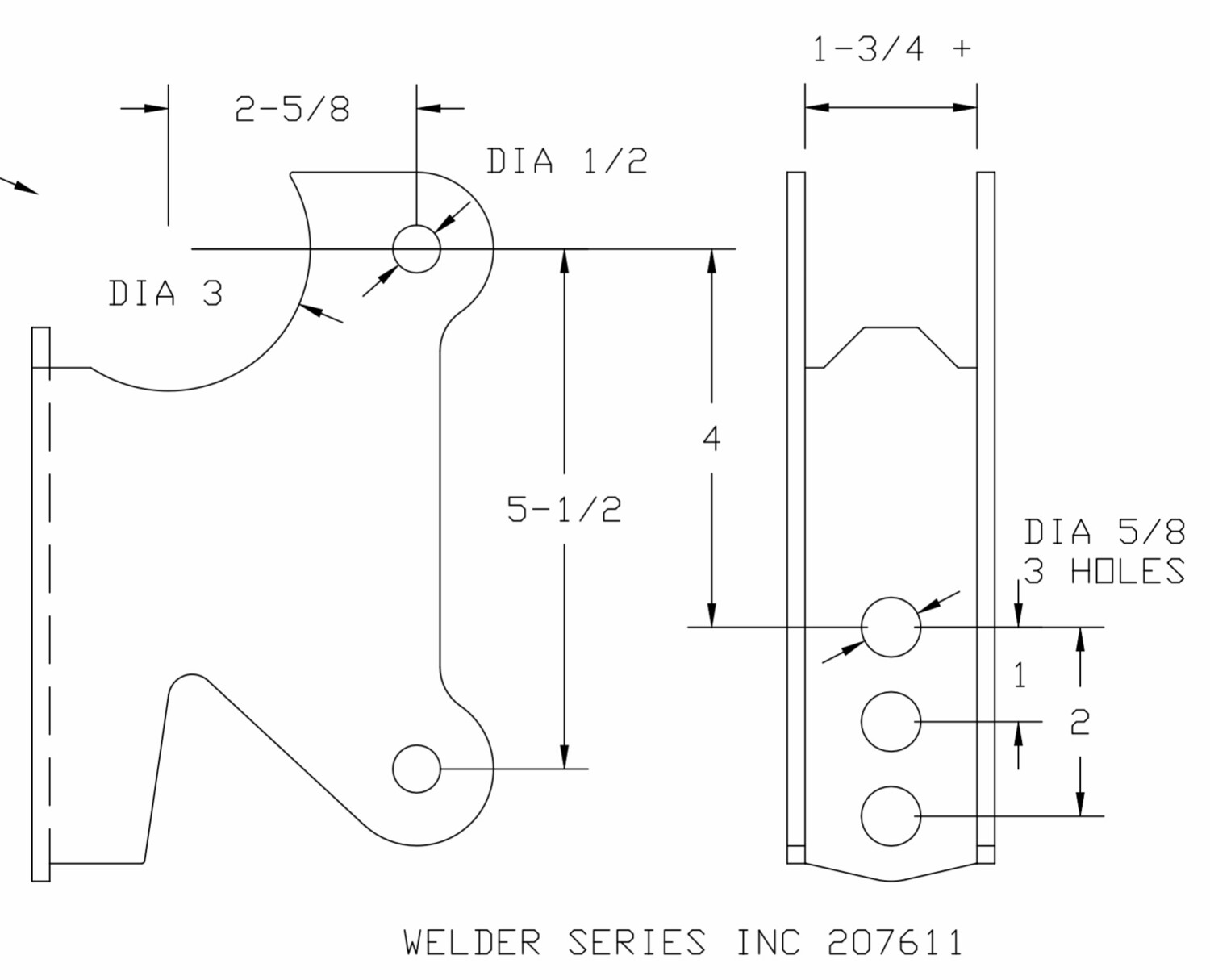

Axle Bracket, rear, for combination 4-link and lower coil-over mount or shock mounts. (Use Block #21854 to support the bolt when coil-overs are used.) Holes for 4-link are ½” diameter on 5-1/2″ centers. Designed for 1-3/4″ wide urethane bushings. If your bushings are 1-3/8" wide, spacers can be used to increase the width to 1-3/4". The 3 coil-over holes are 5/8″ diameter on 1″ centers. The lower coil-over hole center is 4-1/2″ below the bottom of the axle tube. Made to fit 3″ or 3-1/4" diameter axle tubes.

Now available with the lower coil over mounting holes 1" lower to use a longer coil over or to mount the upper crossmember a bit lower in the frame.

Nicely laser cut and formed from 3/16" pickled & oiled mild steel.

Priced each.
