Basic Disc Brake Kit, 1969–1977 GM Caliper, Stock Ford Spindle, 5 on 4-3/4

Front disc brake conversion kit designed to install 1969–1977 GM single-piston calipers and 1973–1977 GM 11 inch rotors with a 5 on 4-3/4 inch bolt pattern onto 1937–1948 Ford passenger car style spindles. This kit is intended for straightforward street rod conversions and does not require machining of the spindles.

Designed for use on traditional 1932–1948 Ford-based street rods, this setup provides improved braking performance while retaining stock Ford spindles.

• Fits 1937–1948 Ford passenger car style spindles
• Uses 1969–1977 GM mid-size single-piston calipers
• Uses 1973–1977 GM 11 inch rotors
• 5 on 4-3/4 inch wheel bolt pattern
• No machining required
• Not compatible with bolt-on steering arms
• Intended for street rod applications
• Not recommended for T-buckets or early lightweight roadsters

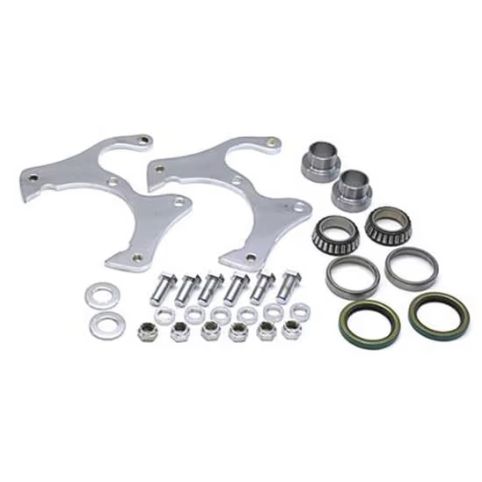

Kit includes:
• Caliper brackets
• Mounting hardware
• Bearing and seal adapters
• Seals
• Inner bearing cups
• Inner bearing cones
• Spacers
• Installation instructions

Not included:
• Rotors
• Calipers
• Dust caps
• Washers
• Spindle nuts

Specifications:
• Material: Steel
• Finish: Zinc plated
• Centerline of holes: 7.00 inches
• Material thickness: 0.31 inch
• Hardware included: Yes
