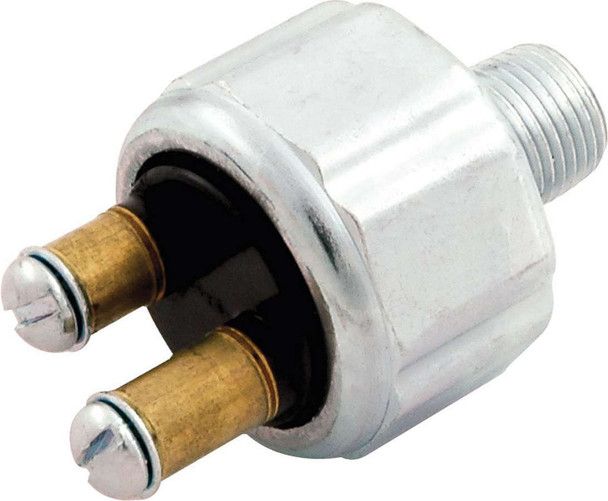

Brake Light Pressure Switch – 1/8"-27 NPT, 6-32 Terminals
SKU ALL76252
C$29.23
In stock: 5 available
1
Save this product for later
Brake Light Pressure Switch – 1/8"-27 NPT, 6-32 Terminals
Product Details
Brand: Allstar Performance
MPN: ALL76252
Unit of Measure: Sold each
Ships to Canada Only: Due to tariffs, this item cannot be shipped to the US.
Hydraulic pressure-activated brake light switch designed to install directly into the brake system. The switch activates when brake pressure rises between 60–120 PSI, closing the electrical circuit to power brake lights or a brake light relay. Designed for simple two-wire hookup, with one power supply lead and one output lead. Ideal for hot rods, customs, and aftermarket brake systems.
• Pressure-activated brake light switch
• Activates at 60–120 PSI
• Rated at 4.5 amps
• 1/8"-27 dryseal NPT mounting threads
• 6-32 screw terminals
• Simple two-wire connection
• Designed for hydraulic brake systems
• Sold individually
