Carteeair X275 Air Compressor

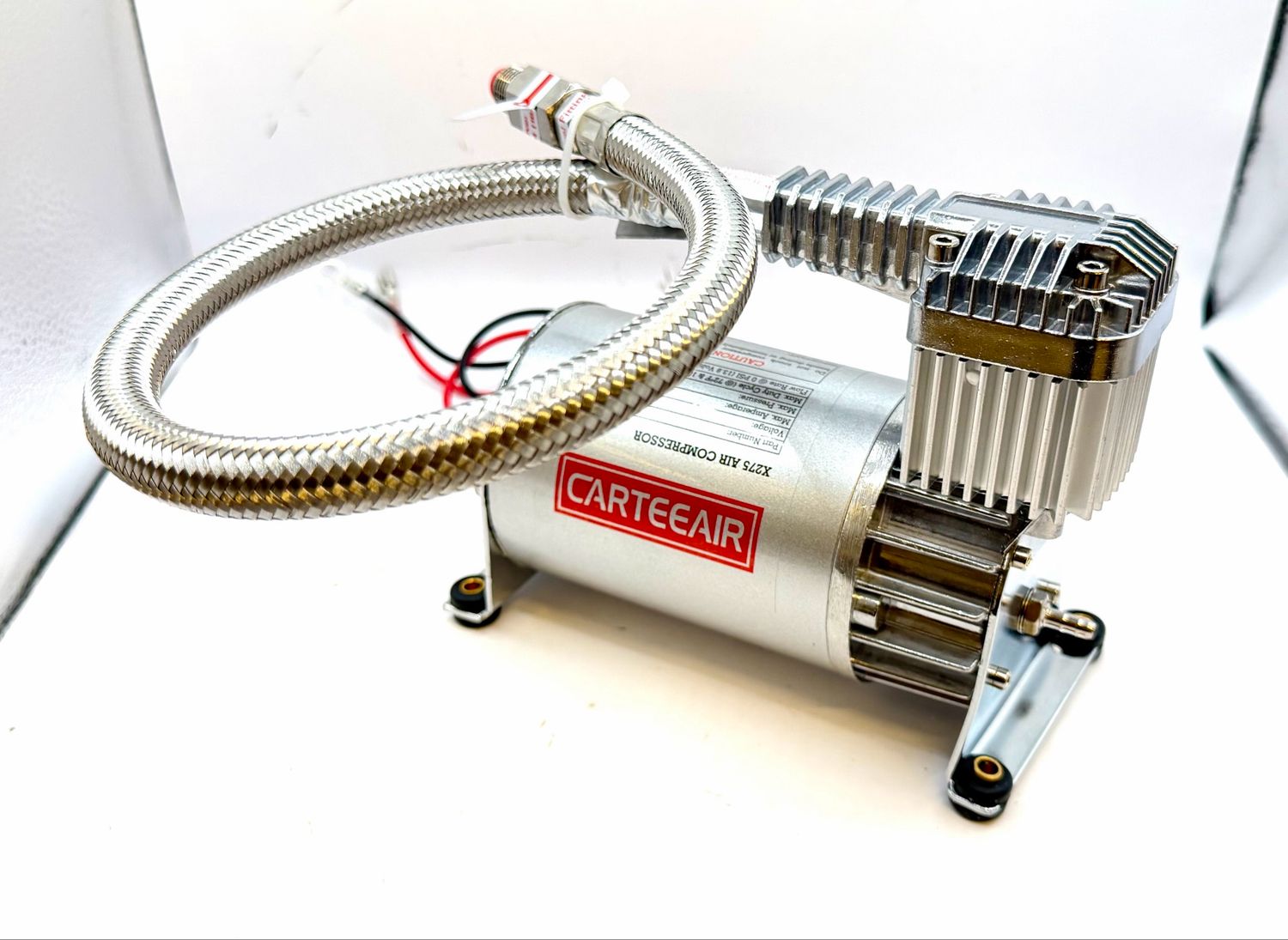

CarteeAir X275 Air Compressor Kit

Designed for air suspension, air horn, and on-board air applications, the CarteeAir X275 compressor delivers reliable performance in a compact, hard-mount package. This 12-volt unit uses a direct-drive, oil-less design for consistent operation without the need for maintenance, making it ideal for street rods, trucks, and custom builds.

Built with a permanent magnet motor and reinforced internal components, the X275 is engineered for durability and steady airflow. The integrated thermal overload protection and sealed motor housing help protect the compressor from heat and moisture, ensuring dependable operation in a variety of conditions.

With a working pressure up to 150 PSI and a 25% duty cycle at 100 PSI, it provides sufficient output for intermittent use such as air ride adjustments and air horn activation.

Specifications:

• 12-volt operation
• Permanent magnet motor
• Maximum working pressure: 150 PSI
• Duty cycle: 25% @ 100 PSI
• Maximum amp draw: 18 amps
• Flow rate: approximately 2.03 CFM at 0 PSI
• IP54 rated for dust and moisture resistance
• Dimensions: approximately 15.2" L x 5.9" W x 12.8" H
• Weight: approximately 15.6 lbs

Kit Includes:

• X275 air compressor
• Stainless braided leader hose with check valve

Notes:

• Oil-less design requires no maintenance
• Hard-mount configuration for permanent installation
• Suitable for air suspension systems, air horns, and auxiliary air supply
• Thermal overload protection helps prevent overheating during operation
