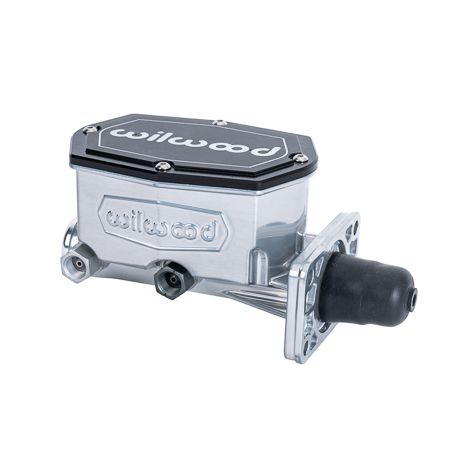

Compact Tandem Master Cylinder – Mopar 4-Bolt – 1 Inch Bore – Chrome Powder Coat

Compact tandem outlet master cylinder designed specifically for Mopar vehicles using the unique four-bolt firewall mounting pattern found on A-body, B-body, and E-body cars from the 1960s and 1970s. The rectangular mounting flange matches factory Mopar firewall layouts, making this an ideal performance-oriented replacement or upgrade.

This master cylinder features an aluminum body with an integral reservoir and dual hydraulic circuits. The 1.00 inch bore version is suitable for both manual and power-assisted brake systems. The compact design provides excellent clearance while offering modern braking performance and significant weight savings compared to original cast-iron units.

Finished in chrome powder coat for durability and a clean engine bay appearance. This version does not include a pushrod.

• Compact tandem master cylinder
• Mopar-specific 4-bolt mounting flange
• Fits A-body, B-body, and E-body Mopar applications
• 1.00 inch bore
• Tandem outlet design
• Aluminum construction
• Chrome powder coat finish
• Integral reservoir
• Reservoir capacity: 7.8 oz / 4.7 oz (14.0 / 8.5 cu in)
• Suitable for manual or power-assisted brakes
• Lightweight, approximately 3 lb

Dimensions
• Bore size: 1.00 in
• Piston area: 0.780 in²
• Stroke: 1.10 in
• Overall length: 7.16 in
• Flange to end length: 6.55 in

Outlet ports
• Outlet 1: 1/2-20
Compatible fittings: 3/8-24 IF or 1/2-20 IF
• Outlet 2: 1/2-20
Compatible fittings: 3/8-24 IF or 9/16-20 IF
