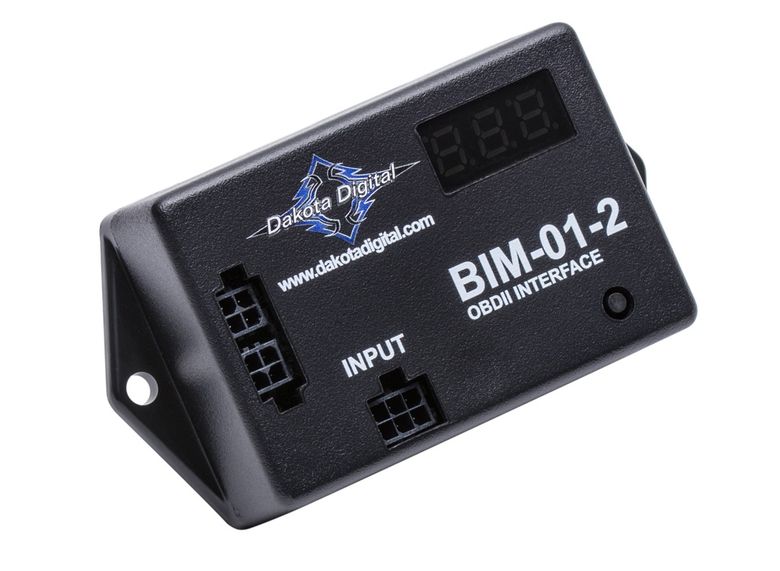

The Dakota Digital BIM-01-2 OBD-II / CAN Interface Module connects directly to your vehicle's OBD-II diagnostic port, allowing compatible Dakota Digital instrument systems to display engine and transmission data from the factory ECM. Compatible with J1850 and CAN OBD-II protocols, it provides an easy way to add digital vehicle data without installing additional sensors.
• Connects directly to the vehicle's OBD-II diagnostic port
• Compatible with SAE J1850 VPW, SAE J1850 PWM, and ISO 15765 CAN (500k, 11-bit) OBD-II protocols
• Designed for vehicles using SAE J1979 PID protocol
• Compatible with Dakota Digital GRFX, RTX, HDX, VHX, and VFD3 instrument systems with black plastic control modules
• Earlier Dakota Digital systems with aluminum control modules are not BIM compatible
• BIM-compatible control boxes with a 3.5mm BIM input require adapter harness 394194 (sold separately)
Available on most compatible vehicles:
• Speedometer signal
• Tachometer signal
• Engine coolant temperature
• Check engine indicator
Vehicle-dependent functions (ECM dependent):
• Intake air temperature
• Transmission temperature
• Ambient air temperature
• Gear position
• Oil pressure
• Boost pressure
• Data availability varies by vehicle, ECM, and factory sensors
• GM Connect & Cruise packages do not transmit gear position data
• Ideal for simplifying gauge installation by utilizing factory ECM data
• Quantity: Sold individually
