Disc Brake Bracket Kit for 1948-56 Ford Pickup Drum Spindles

Upgrade your front brakes with the CPP Disc Brake Bracket Kit engineered to convert your 1948–1956 Ford ½-ton truck’s drum spindles to accept disc brakes with a 5 on 4.5" lug bolt pattern. This kit gives you the capability to fit modern disc brake systems while retaining classic looks and reliable stopping power.

Key Features & Benefits

• Direct Fit for ’48–’56 Ford Trucks: Designed specifically for drum spindles on ½-ton trucks from 1948 through 1956 — no major modifications required.
• 5-Lug, 5×4.5″ Pattern: Allows use of modern 5-lug disc brake hardware and wheel options.
• Zinc-Plated Finish: Corrosion-resistant zinc coating on brackets helps protect against rust and ensures long life in road conditions.
• Complete Hardware Included: Comes with caliper brackets, bearing adapters, disc bracket washers, and a full hardware kit for installation.
• Proven Compatibility: Works with CPP’s 2705 component disc brake kit (i.e. these brackets integrate with their other disc brake systems)
• Precision Manufacturing: Brackets and adapters machined for proper alignment, rotor clearance, and rotor / caliper positioning.

Specifications

What’s Included in the Kit

This kit includes:

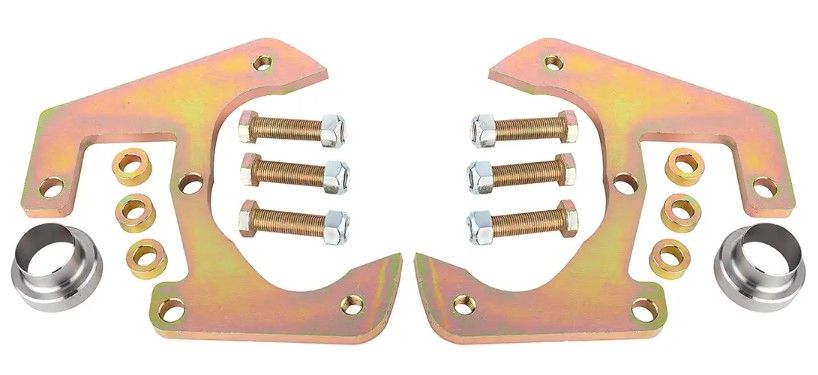

• Two caliper mounting brackets (left & right) for 5×4.5″ pattern
• Bearing adapters for 1948–1956 Ford trucks, configured to work with your factory spindle
• Disc bracket washers and all necessary mounting hardware (bolts, spacers, etc.)
• A full hardware kit labeled H-4856DBK-4.5
• Instruction sheet (P/N I-4856DBK-4.5)
• Branding / sticker pack (CPP blue hardware sticker)

Installation Notes & Tips

1. These brackets bolt to your factory drum spindles (no major spindle modifications needed).
2. Ensure spindle surfaces and mounting points are clean, flat, and free of rust or distortion before installing.
3. Use proper torque specs when tightening bolts — check CPP instructions or standard brake component torque values.
4. Check rotor-to-caliper clearance once installed, and verify brake line routing / length.
5. Bleed the brakes thoroughly after installation to remove any air in the system.

Why Choose the 4856DBK-4.5 Kit?

If you want to modernize the braking performance of your classic 1948–1956 Ford truck while maintaining a period-correct appearance and retaining your drum spindle geometry, this bracket kit is an excellent choice. The 5-lug, 5×4.5″ pattern means you have access to a broad range of modern brake parts and wheels. CPP’s reputation and hardware support make this a trusted upgrade path for vintage Ford truck owners.
