E-Stopp ESK001 Electric Emergency Brake Kit with Cable Bracket

Electric parking brake system designed for custom vehicles, street rods, and trucks where a traditional hand or foot-operated emergency brake is not practical. Uses a one-button electronic controller to set and release the parking brake through a cable-driven actuator. Can be wired directly to the battery for operation with the ignition off. Compact design frees up space in the cab and on the chassis and can also function as an anti-theft device when the control button is concealed. Compatible with any brake system that accepts a standard e-brake cable.

• Application: Vehicles using a cable-style parking brake system
• Operating voltage: 12V
• Control type: One-button electronic control
• Activation: One-touch engage, second push to release
• Feedback: Audible activation confirmation
• Mounting location: Chassis mount
• Compatibility: Works with disc or drum brake systems that accept an e-brake cable
• Function: Sets and releases parking brake electronically
• Power requirement: Battery power required to engage and disengage
• Additional function: Can act as an anti-theft device when switch is hidden

Physical specifications
• Overall length: 15"
• Overall width: 2"
• Overall height: 1.8"
• Material: Steel
• Finish: Zinc

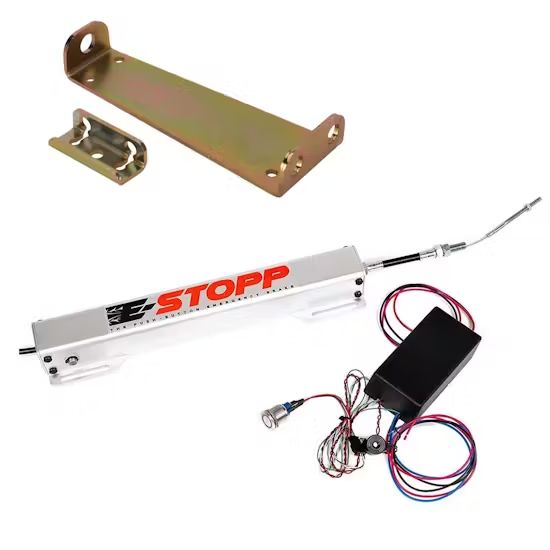

Included components
• 12V control box with integrated micro-computer and detachable push button
• Electric parking brake actuator with rugged metal casing
• Wire-to-wire butt splicers
• Battery ring terminal connectors
• B-EZ200 parking brake cable connector bracket
