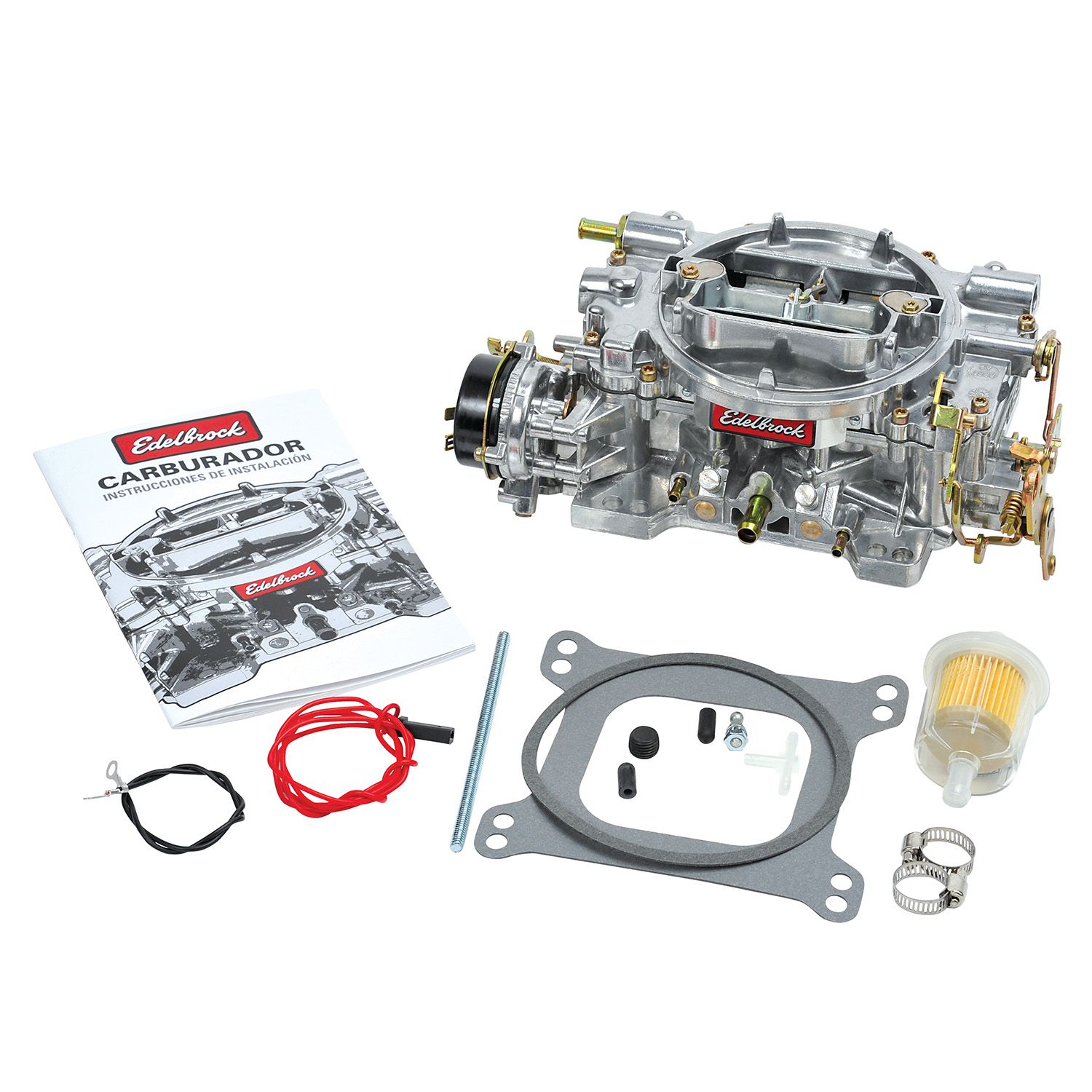

The Edelbrock Performer 1406 is a 600 CFM four-barrel carburetor designed for dependable street performance and everyday drivability. Featuring an electric choke, lightweight aluminum construction, and Edelbrock's metering rod design, it offers excellent fuel economy, easy tuning, and long-term reliability.
• 600 CFM airflow rating
• Four-barrel design
• Square-bore flange
• Electric choke
• Non-EGR configuration
• Lightweight all-aluminum construction
• Satin finish
• Two-piece body resists warping
• Metering rod calibration system for easy tuning
• No power valves to blow out from engine backfires
• Holds calibration well for consistent performance
• Compatible with gasoline, ethanol-blended fuels, and gasohol
• Primary bore diameter: 1.44 in
• Secondary bore diameter: 1.69 in
• Main venturi diameter: 1.19 in
• Body height: 3.25 in
• Secondary jet size: 0.095 in
• Metering rod size: 0.075 x 0.047 in
• Includes carburetor gasket
• Calibrated for fuel economy and street performance
• Ideal for small block and mild big block street applications
Installation Instructions:
https://www.edelbrock.com/mwdownloads/download/lin...
Carburetor Tuning Guide:
