Four Link Bars

Buy 10 of one part number, get 10% off.

Buy 40+ to get them for 40% off! Sorry, no additional discounts applicable.

1" OD bars with either 5/8-18 or 3/4-16 threads, available for large or regular bushing sizes.

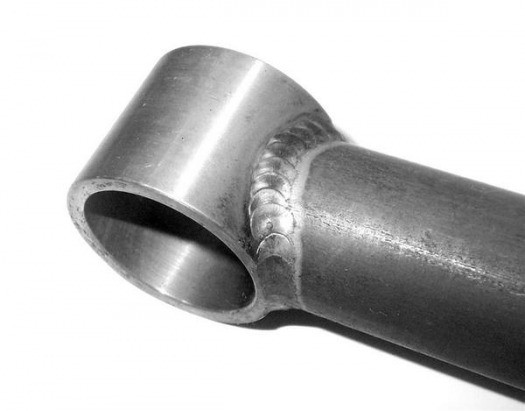

BAR, 1″ x .156" or .219" wall seamless tubing, one end tapped 5/8-18 RH or 3/4-16 (about 2-3/8″ deep) and the other end notched 1-3/8″ or 1-5/8″ diameter to take a tube for urethane bushings. A welded bar has the urethane bushing tube TIG welded on at 90 degrees (usually called “straight”). The thread is machined directly into the tubing (weld-in bungs are not used).

Also available threaded both ends.

Bars are measured from the center of the urethane bushing eye to the threaded end of the bars. The center-to-center dimension will be about 1-5/8” longer than the bar.

Custom bars can be made to order.

5/8-18 bars are only available welded.

Unwelded bars do not include urethane bushing tube. Please order separately. Welded bars include the urethane bushing tube.

Order urethane bushing kits separately.
