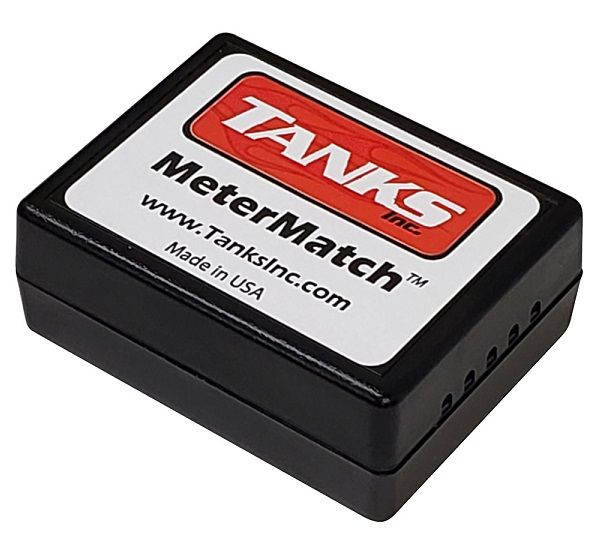

MeterMatch Fuel Gauge Interface Module

Electronic interface module designed to correct ohm-range mismatches between analog gauges and resistive senders. This module allows virtually any fuel level sender to work accurately with almost any analog fuel gauge, eliminating the need to replace senders, drop fuel tanks, or live with inaccurate readings.

Ideal for vehicle restorations, gauge upgrades, or custom fuel tank installations, this module solves common issues caused by differing ohm ranges used by various vehicle and gauge manufacturers. It also helps smooth erratic needle movement caused by fuel slosh and allows precise calibration even with irregularly shaped fuel tanks.

In addition to fuel level applications, this interface can be used with other resistive sender-based gauges such as oil pressure and temperature gauges.

• Fuel gauge interface module
• Converts sender and gauge ohm ranges to work together
• Supports custom ohm ranges from 0–3,000 ohms
• Calibrate at empty, full, and two additional points
• Improves accuracy with irregular-shaped fuel tanks
• Compatible with most short sweep analog fuel gauges
• Helps correct erratic needle movement from fuel slosh
• Easy screw-terminal wiring connections
• Simple rotary knob and push-button calibration
• Programmable voltage correction
• Programmable low or high alarm output (for LED indicator)
• Programmable averaging on or off to reduce needle bounce
• Operating voltage: 7–16 volts DC
• Compact size: 2.4 in x 1.85 in x 0.93 in
• Made in the USA
