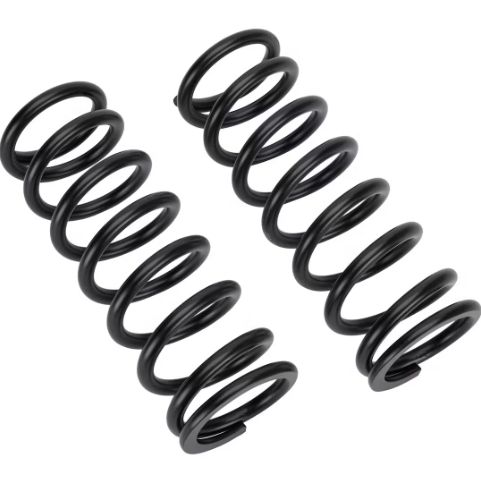

Mustang II Front Coil Springs, 13.5 in Free Height, 275-425 lb.

These Mustang II front coil springs are designed for a wide range of street rod, custom, and light truck applications using Mustang II–style front suspension. All springs share the same physical dimensions and finish, with multiple spring rate options available to match vehicle weight and drivetrain configuration.

General Specifications:
• Application: Mustang II front suspension
• Free height: 13.5 inches
• Inside diameter: 3.50 inches
• Wire diameter: 0.635 inch
• Material: Steel
• Finish: Powder coated
• Color: Black
• Coil ends: Square (top) / Pigtail (bottom)
• Progressive rate: No
• Sold as: Pair

Spring Rate Selection Guide (Approximate Front-End Weight)
• 1200 lbs = 275 lb spring
• 1300 lbs = 300 lb spring
• 1400 lbs = 325 lb spring
• 1500 lbs = 350 lb spring
• 1600 lbs = 375 lb spring
• 1700 lbs = 400 lb spring
• 1800 lbs = 425 lb spring

Installation & Setup Notes:
• All Mustang II springs offered are 13.5 inches long and must be trimmed to suit each individual application
• Spring rate increases as the spring is shortened
• When installing, the flat end of the spring installs into the upper spring hat
• The pigtail end installs into the lower control arm
• Rotate the spring during installation to properly seat the pigtail in the lower arm pocket
• Springs that are too long may not sit correctly in the lower control arm and can bow outward, potentially causing spring bind
• Ride height should be set so the lower control arms are level or slightly downward at the outer ends
• Springs will settle slightly during the first few hundred miles of driving
