Parallel Rear Four Link Package, for Air Springs
SKU WS222550
C$685.00
Options
In stock
1
Save this product for later
Parallel Rear Four Link Package, for Air Springs
Product Details
Brand: Welder Series
MPN: WS222550
Thickness: 3/16" and 10 ga
Bolt Size: 1/2"
Thread: 3/4-16
Tubing Size: 1"

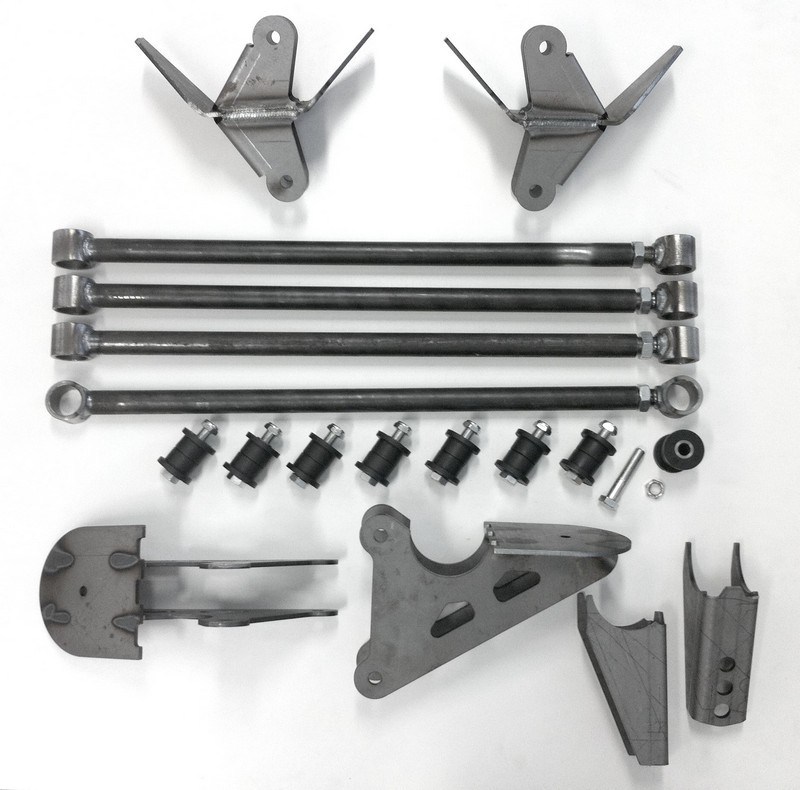

We've put together a rear suspension package which includes our big bushing parallel 4 link kit, universal Panhard kit, lower air spring/four link axle brackets, upper air spring brackets, and universal lower shock brackets.
Bars for the four link kit are direct threaded and approx. 25″ center-to-center. They include 1-3/4″ wide urethane bushings and adjusters with 3/4-16 threads. Center of the bag will be 3” behind the axle tube.
Designed for 3″ axle tubes. Brackets for 3-1/4" axle tubes are available. Please include a note with your order if you want this option.
The Panhard kit includes an axle bracket designed for 3″ axle tubes as well, with a bar approx. 29″ center-to-center and tabs for the frame end.
Power Train Setup Guide (Inland Empire Driveline)
Four link instructions
What’s Included?
1 – Big Bushing Four Link Kit with combination air spring/ axle brackets for F9000 bags (or similar)
1 – #2184 Universal Panhard Kit
2 – #474219 Air Spring Frame Bracket
2 – #223101 Axle Shock Mount
Hardware, bushings & Instructions
Shipping charge is C$75. Ships via UPS to the lower 48 States and 10 Provinces. No duty or brokerage charges. No surprises. Tracking information will be emailed.
