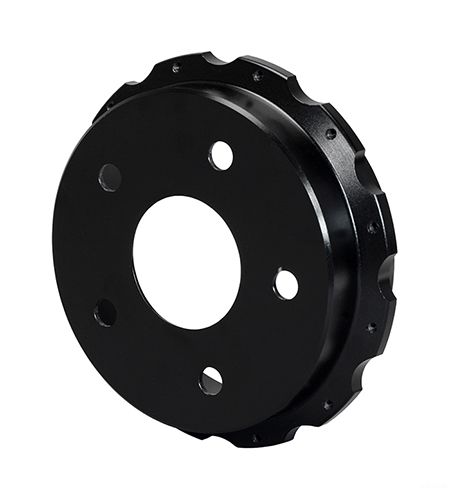

Parking Brake Hat – Standard – Cast Iron – Black E-Coat

Standard parking brake hat designed for use with Wilwood internal shoe parking brake systems. This hat is precision machined from premium-grade cast iron and features a threaded hole design intended for use with through-hole mount rotors.

After machining, the hat is finished in a black E-coat to provide corrosion resistance and long-term durability. Commonly used in Ford Bronco applications, this hat provides proper fitment and alignment when used with compatible Wilwood parking brake components.

• Parking brake hat
• Standard design
• Compatible with Wilwood internal shoe parking brake kits
• Fixed mount style
• Cast iron construction
• Black E-coat finish
• Precision machined threaded holes

Hat dimensions
• Rotor bolt circle: 12 x 8.75 in
• Hat bolt circle: 5 x 5.50 in
• Hat offset: 1.540 in
• Center register: 3.06 in
• Rotor mount hole size: 1/4-28
• Shoe inside diameter: 7.23 in
• Clearance inside diameter: 6.85 in
• Face thickness: 0.18 in
• Hat stud diameter (BC1): 0.640 in
• Weight: 9.0 lb
