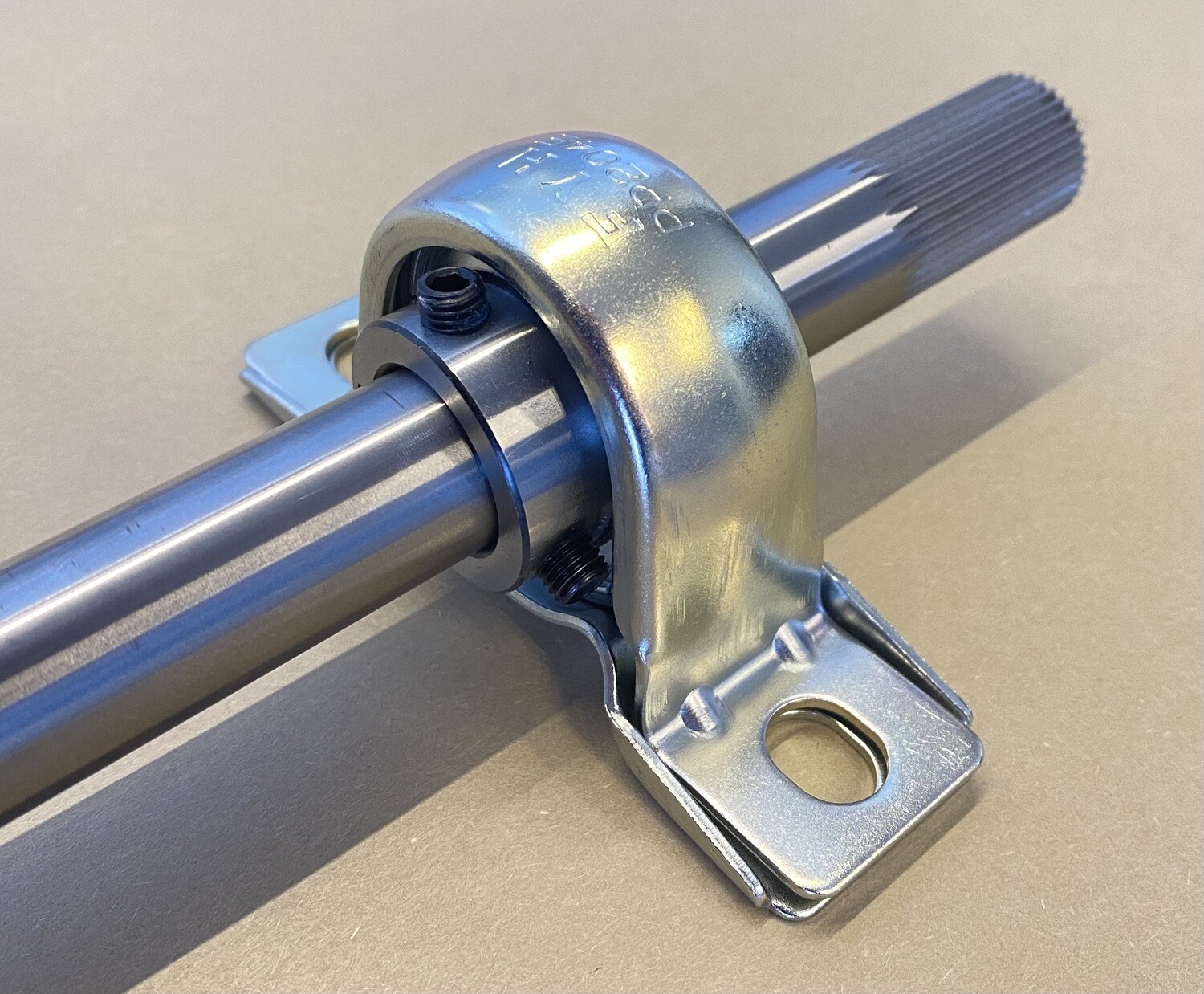

Pillow Block Bearing; ea

A great option to mount a bare sway bar underneath your frame rail. Self aligning to compensate for slight shaft misalignment. The bearing housing OD is spherical and will pivot up to 3 degrees inside the paintable steel cage. 2 set screws to keep your bar secure. Sealed ball bearing keeps out dirt.

3" mounting bolt center-center for 3/4" bar.
3.25" mounting bolt center-to-center for 1" bar.
2" overall height for 3/4" bar, 2-3/8" for 1" bar.
The center of the shaft is 1" from the mounting surface.
Base mounting plate overall dimensions are 3-7/8" x 1-1/4".
Available for 3/4" and 1" bars. Sway bar not included.

Sold individually.
