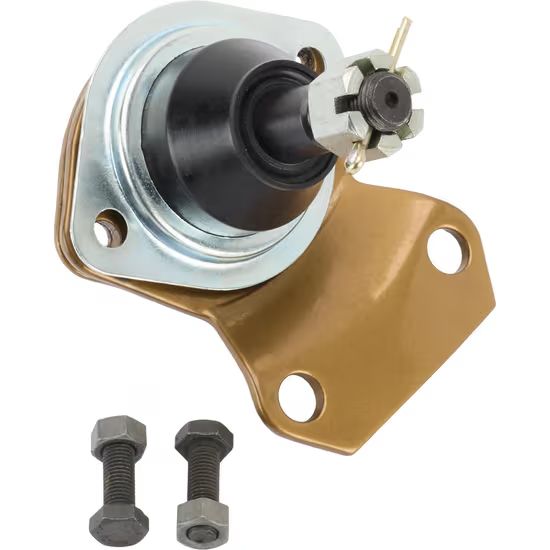

Pinto / Mustang II Upper and Lower Ball Joints with Hardware

Replacement upper and lower ball joints designed for 1974–1980 Pinto, Bobcat, and Mustang II front suspension systems. These bolt-in style ball joints are intended for servicing worn or damaged originals and include mounting hardware for straightforward installation. Suitable for stock and Mustang II–style aftermarket suspension applications.

Upper Ball Joint:
• Fits 1974–1980 Pinto, Bobcat, and Mustang II
• Upper ball joint
• Bolt-in style
• Material: steel
• Degree of taper: 7 degree
• Shank length: 2.54 inches
• Mounting thread length: 1.16 inches
• Taper diameter (top): 0.605 inch
• Taper diameter (bottom): 0.693 inch
• Overall height: 4.25 inches
• Centerline of mounting holes: 2.875 inches
• Hardware included
• Same as MOOG K8212

Lower Ball Joint:
• Fits 1974–1980 Pinto, Bobcat, and Mustang II
• Lower ball joint
• Bolt-in style
• Material: Steel
• Degree of taper: 7 degree
• Shank length: 1.375 inches
• Mounting thread length: 1.00 inch
• Taper diameter (top): 0.637 inch
• Taper diameter (bottom): 0.716 inch
• Overall height: 4.60 inches
• Drop: 0.625 inch
• Centerline of mounting holes: 2.955 inches
• Hardware included
• Same as MOOG K8209
