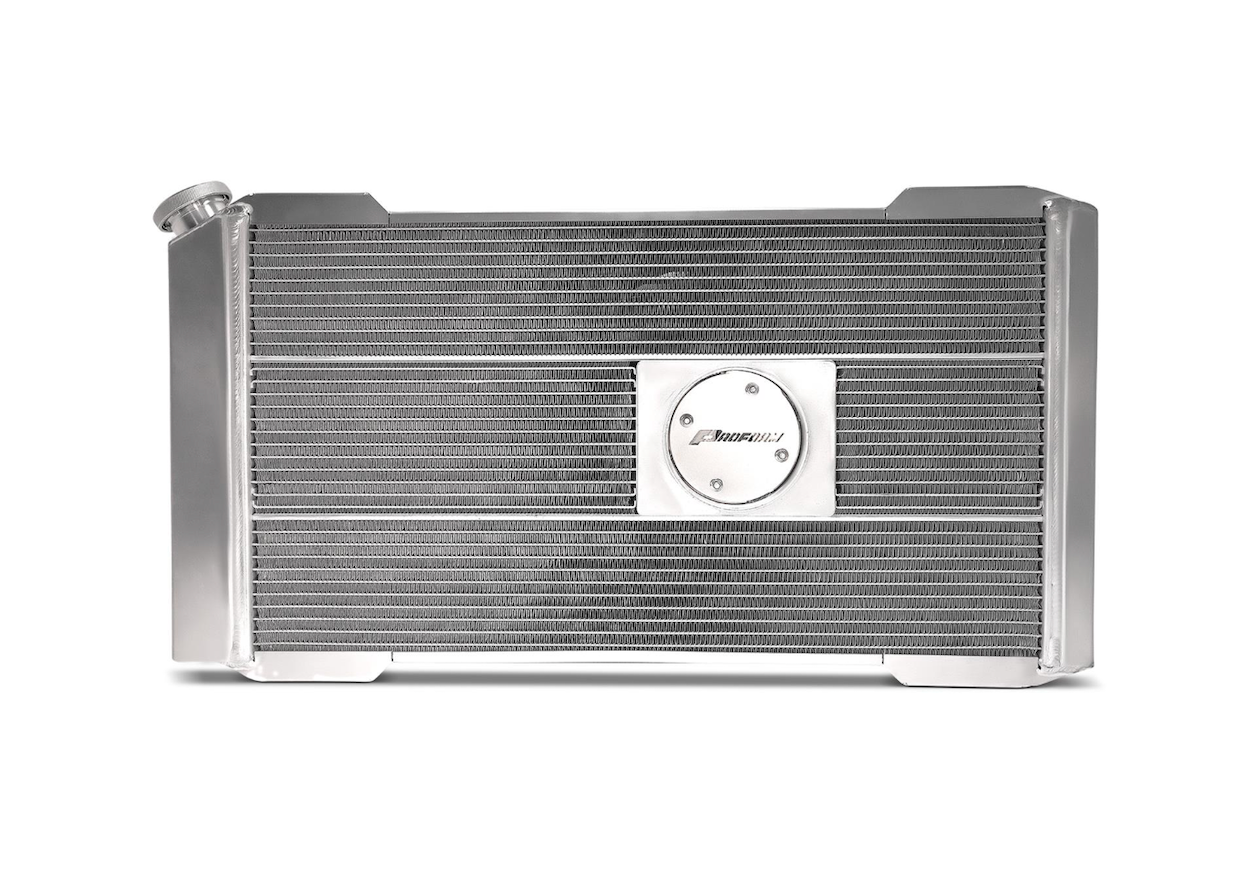

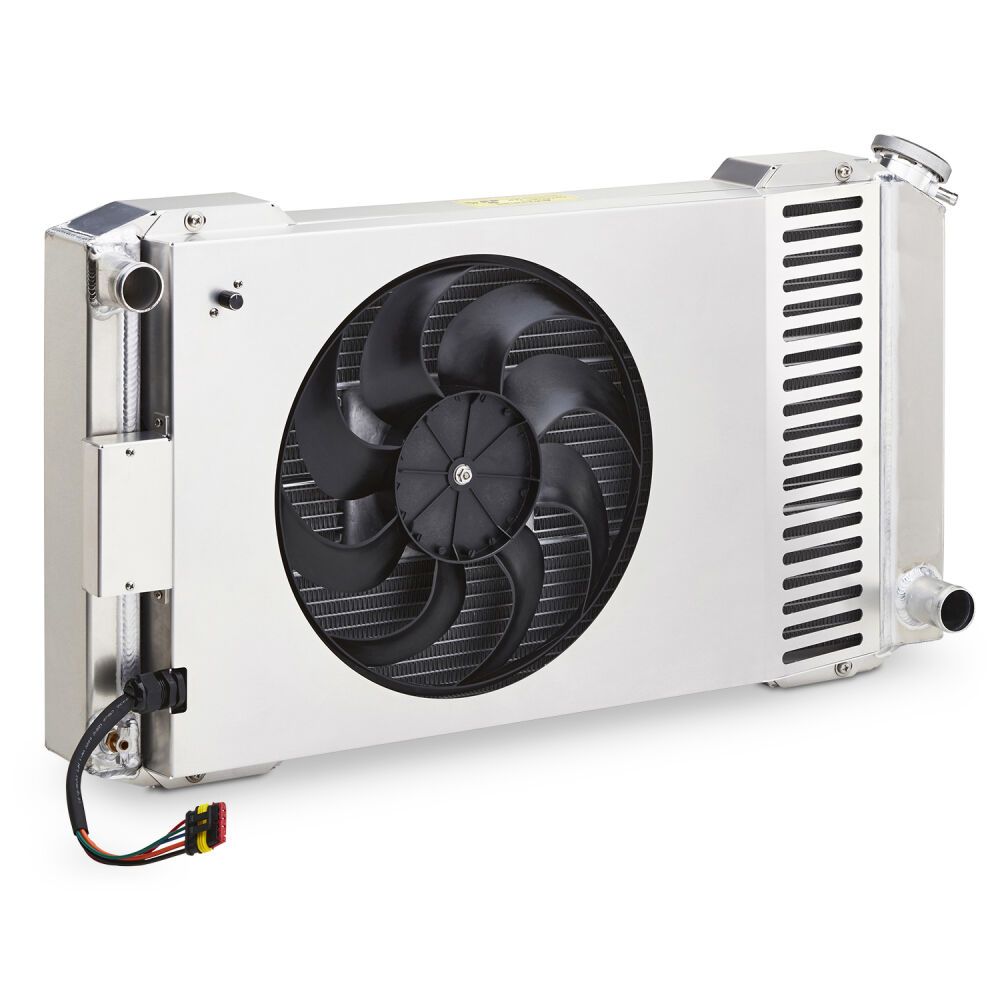

Slim‑Fit Radiator System – Direct‑Fit – Manual Transmission – 1968–77 A‑Body (Chevelle, El Camino, etc.)
SKU 69625.1
C$1 445.00
In stock: 1 available
1
Save this product for later
Slim‑Fit Radiator System – Direct‑Fit – Manual Transmission – 1968–77 A‑Body (Chevelle, El Camino, etc.)
Product Details
Brand: Proform
MPN: 69625.1
Built for a seamless, OEM-engineered appearance and performance, this ultra‑compact Slim‑Fit radiator system packs radiator, fan, shroud, thermostat, wiring harness, and transmission cooler into a compact assembly under 4 inches thick. Designed specifically for 1968–77 GM A‑Body models with manual transmissions, it offers high-efficiency cooling in tight engine bays.
• Core Height: 15.3"
• Core Width: 26"
• Core Thickness: 2.4"
• Total System Thickness (with fan/shroud): 4"
• Overall Height: 16.8"
• Overall Width: 31.2"
• Inlet: 1.5" diameter, driver side
• Outlet: 1.75" diameter, passenger side
• Transmission: Manual
• Mounting: Direct-fit, chassis mount
• Construction: All aluminum, natural finish
• Fan: Integrated electric, brushed motor: 1650 CFM
• Max Recommended Horsepower: 500 HP
• Includes ½"–20 threaded transmission cooler connection
Included:
• Hybrid extruded tube radiator with engineered louvers and TIG-welded tanks
• Integrated aluminum shroud and electric fan
• Thread-in adjustable thermostat
• Billet aluminum radiator cap
• High-capacity overflow tube with billet filler neck
• Wiring harness
