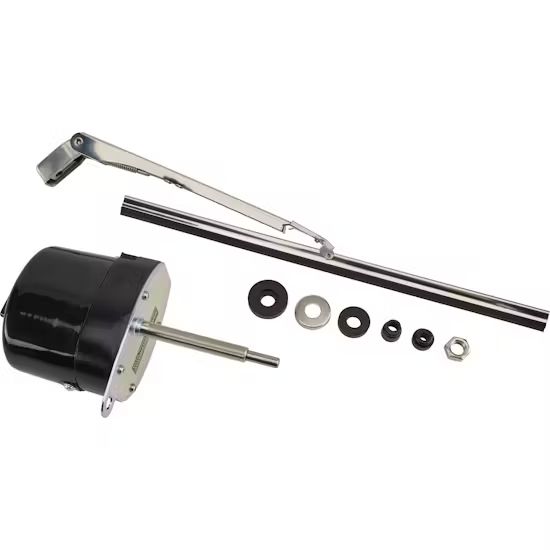

Universal Black 12 Volt Electric Windshield Wiper Motor Kit

Compact, self-contained electric windshield wiper motor kit designed to provide maximum flexibility for custom cars, street rods, and trucks. The universal design allows the motor to be mounted in virtually any orientation, removing the limitations of factory-style mounting locations. Ideal for flat windshield applications and projects with tight space constraints, including chopped tops and custom header panel installations.

The 12-volt single-speed motor features an integrated on/off switch with a built-in home/park position and a 90-degree sweep. This allows the wiper to return to a consistent resting position after use. The compact motor body makes it well suited for installations above the windshield, including applications with pop-out windshields. Multiple motors can be wired together using an external switch for dual wiper setups if required.

The kit includes an adjustable wiper arm and a cut-to-fit wiper blade, allowing fine tuning for different windshield sizes and custom applications. Designed to work on nearly any flat windshield vehicle, including 1920s–1940s hot rods, Model A and Model T builds, as well as Jeeps and Broncos.

• Application: Universal fit, flat windshield applications
• Vehicle type: Cars and trucks
• Motor type: Electric windshield wiper motor
• Voltage: 12 volt
• Speed: Single speed
• Sweep angle: 90 degrees
• Switch: Integrated on/off switch with home/park position
• Amperage: 2 amps
• Finish: Black

Motor dimensions and mounting details
• Motor body height: 2-1/8"
• Motor body width: 3-1/4"
• Motor body depth: 3-1/3"
• Mounting tab extension: 9/16" with isolating grommet
• Housing shape: Oval

Drive shaft specifications
• Shaft length: 3-1/4"
• Shaft diameter: 0.235"
• Thread type: Right-hand male
• Threaded sleeve length: 2-1/2"
• Thread length on input shaft: 2.040"
• Length from motor face to end of input shaft: 3.165"
• Adjustable threaded sleeve for proper windshield spacing

Included components
• Electric windshield wiper motor
• Adjustable wiper arm (adjusts from 7" to 11")
• Cut-to-fit wiper blade (11")
• Wiper arm mounting hardware
