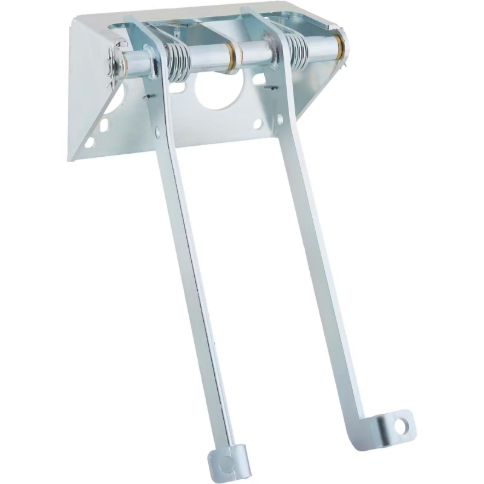

Universal Firewall Mount Clutch / Brake Pedal Assembly

Firewall-mounted clutch and brake pedal assembly designed to convert vehicles originally equipped with an under-floor master cylinder to a firewall-mounted master cylinder setup. This universal assembly mounts the brake and clutch pedals along with their respective master cylinders, providing a clean and practical solution for engine swap and brake system conversions.

Constructed in the USA from laser-cut 1/4 inch thick steel plate, the assembly offers excellent rigidity and long-term durability. Bronze bushings provide smooth pedal operation, and the zinc-plated finish helps resist corrosion.

• Universal fit firewall-mounted pedal assembly
• Designed for vehicles originally using under-floor master cylinders
• Supports firewall-mounted brake and clutch master cylinders
• Compatible with manual brake master cylinders with 3-1/4 inch bolt centers
• Compatible with clutch master cylinders with 2-1/4 inch bolt centers
• 6:1 pedal ratio
• Bronze bushings for smooth, consistent pedal movement
• Zinc-plated finish for corrosion resistance
• Made in the USA
• Mounts directly to the firewall

Specifications:
• Material: steel
• Material thickness: 0.25 inch
• Overall height: 15.5 inches
• Overall width: 8.375 inches
• Depth: 4.5625 inches
• Bolt hole pattern: 3.88 inches x 6.50 inches

Notes:
• Pedal pads are not included and are sold separately
• Pedals feature a 1/2 inch diameter through-hole for pedal pad installation
