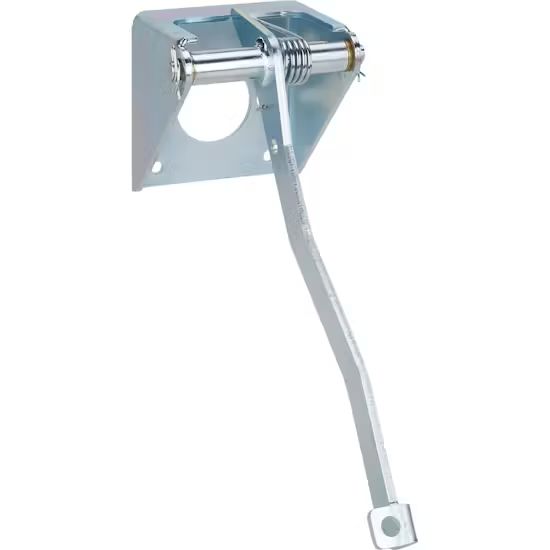

Universal Fit Firewall Mount Brake Pedal Assembly

Firewall-mounted brake pedal assembly designed for custom vehicles, street rods, and trucks using a firewall-mounted master cylinder. The universal bracket supports both the brake pedal and the master cylinder, allowing for a clean, compact installation on the firewall. Compatible with either manual master cylinders or power brake boosters and engineered with a 6:1 pedal ratio to provide proper braking leverage and consistent pedal feel.

Constructed from laser-cut 1/4" thick steel plate, this assembly offers excellent strength and durability. Bronze bushings are used at the pivot points to ensure smooth operation and long service life. The zinc plated finish provides corrosion resistance, making it suitable for long-term use in a variety of driving conditions. The pedal arm includes a 1/2" diameter thru-hole for attaching a bolt-on pedal pad, which is sold separately.

• Mounting position: Firewall
• Application: Universal fit
• Pedal type: Brake pedal assembly
• Pedal ratio: 6:1
• Material: Steel
• Material thickness: 0.25"
• Finish: Zinc plated
• Feed type: Single
• Bolt hole pattern: 3.38" x 3.38"
• Manual master cylinder compatibility: 3-1/4" bolt centers
• Power booster compatibility: 3.38" x 3.38" bolt pattern
• Pivot support: Bronze bushings
• Pedal pad mounting: 1/2" diameter thru-hole (pedal pad sold separately)
• Country of origin: Made in the U.S.A.
