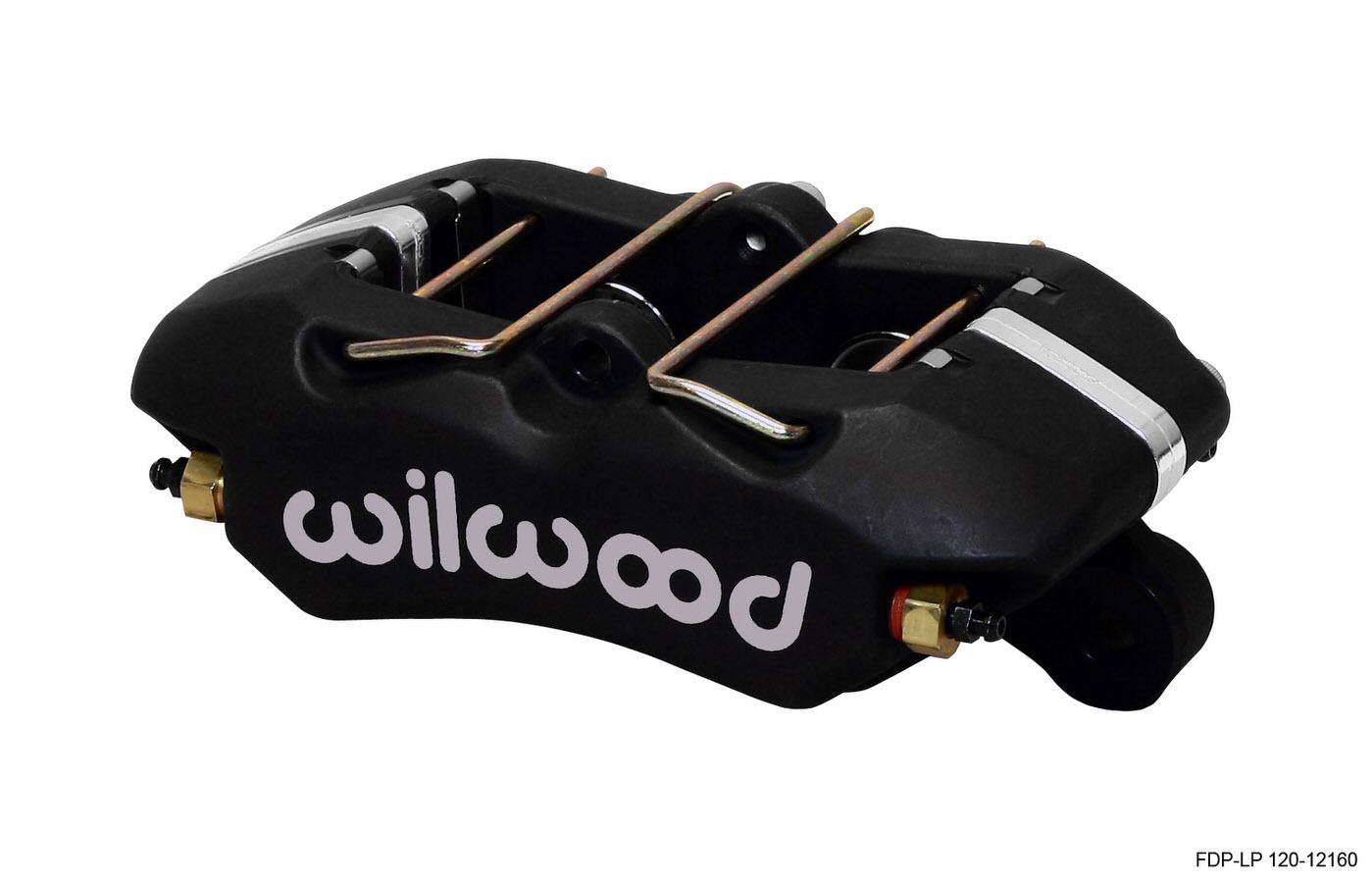

Wilwood Forged DynaPro Low-Profile 4-Piston Caliper, Black Anodized
SKU 120-12160
C$282.36
In stock: 2 available
1
Save this product for later
Wilwood Forged DynaPro Low-Profile 4-Piston Caliper, Black Anodized
Product Details
Brand: Wilwood Disc Brakes
MPN: 120-12160
Unit of Measure: Sold each
Shipping Restrictions: Due to tariffs, this item cannot be shipped to the US.
Wilwood Forged DynaPro Low-Profile caliper combines race-proven technology with a compact design for applications where rotor hat clearance and swept area are limited. Its stress-flow forged aluminum body provides exceptional strength and reduced deflection, helping deliver efficient clamping, less pedal travel, and a firm, responsive pedal feel.
• 4-piston caliper
• (4) 1.12" piston bores
• 1.98 sq. in. total piston area
• Heavy-wall stainless steel pistons
• Forged aluminum construction
• Type III black anodized finish
• Low-profile design for tight-clearance applications
• Universal mounting – front, rear, left, or right
• Lug mount design
• 5.25" mounting bolt center
• 0.39" mounting hole size
• 2.10" mount height
• 1/8"-27 NPT inlet
• Designed for 0.75" to 0.83" thick rotors
• 0.81" nominal rotor width
• Designed for 11.00" to 13.06" diameter rotors
• Uses Wilwood 4812-style brake pads
• 5.1 sq. in. total pad area
• 1.71 cu. in. total pad volume
• Quick-E-Clip pad retainers allow fast pad changes
• SRS bridge plates help reduce pad rattle, squeal, and caliper wear
• Internal fluid passages
• Four-corner bleed screws provide flexible mounting orientation
• Stress-flow forged body designed to minimize caliper deflection
• No dust boots
• Caliper weight: 3.6 lbs
• Ideal for performance, competition, hot rod, and custom brake applications
• Quantity: Sold individually, brake pads not included
