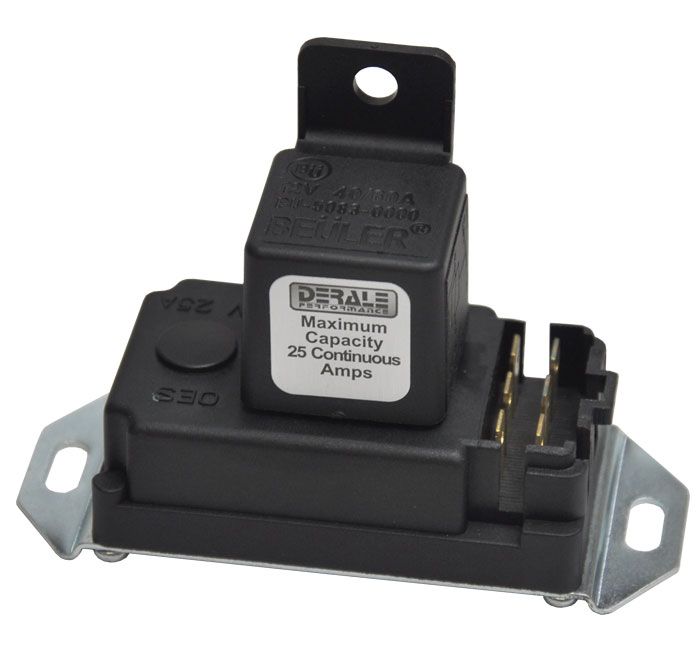

Adjustable Electric Fan Controller, 3/8 Inch NPT

Adjustable electric fan control kit designed to operate one or two electric cooling fans based on coolant temperature. This controller allows the user to fine-tune fan engagement for a wide range of engine and cooling system combinations. The fan turn-on temperature is adjustable, with an automatic shut-off set 10°F below the selected activation point. An A/C override circuit is included to ensure additional cooling when air conditioning is in use.

This controller is intended for standard single-speed electric fans and is not compatible with high-current OEM two-speed fan assemblies.

• Adjustable electric fan controller
• Adjustable turn-on temperature range: 150°F to 240°F
• Fan shut-off temperature preset at 10°F below turn-on setting
• Operates one fan or two fans with a combined draw of 25 amps or less
• Maximum continuous current draw: 25 amps
• Thread-in coolant temperature sensor
• Ground-circuit relay operation
• A/C override circuit included

Includes:
• 3/8 inch NPT water jacket temperature probe
• Heavy-duty 40/60 amp relay wire harness
• Electrical connectors

Compatibility notes:
• Not compatible with OEM two-speed electric fans such as Dodge Viper, Ford Taurus, Ford Contour, or Lincoln Mark VIII
• These fan assemblies exceed the amperage and functional limits of this controller
