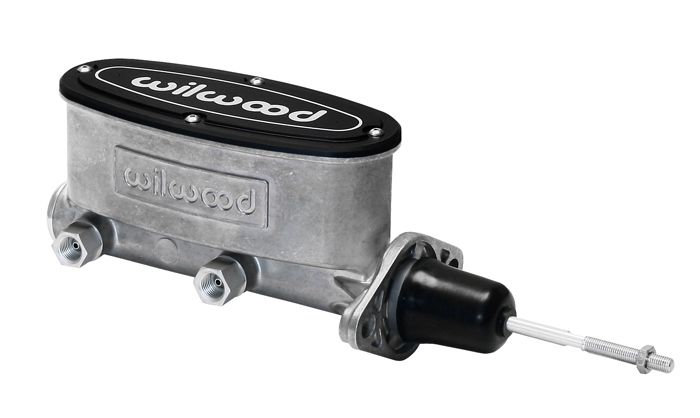

Wilwood Aluminum Tandem Master Cylinder is a lightweight dual-outlet master cylinder designed primarily for manual brake applications. Machined from a high-pressure die casting, it features an integral dual reservoir, outlets on both sides of the bore, and includes a pushrod for installation.
• 7/8" bore size
• 0.600 sq. in. piston area
• 1.10" stroke
• Tandem dual-outlet design
• Designed primarily for manual brake applications
• Aluminum construction
• Bare aluminum finish
• Integral dual reservoir
• Reservoir capacities: 8.0 oz. and 4.8 oz.
• 2:1 primary-to-secondary chamber volume ratio
• Fluid outlet ports located on both sides
• 1/2"-20 outlet ports
• Accepts 3/8"-24 IF or 1/2"-20 IF fitting on outlet 1
• Accepts 3/8"-24 IF or 9/16"-18 IF fitting on outlet 2
• Fits mounting flange spacing from 3.22" to 3.40"
• Compatible with mounting dimensions common on many domestic cars and trucks from the mid-1960s to present
• 12.26" overall length
• 8.15" flange-to-end length
• Includes pushrod
• Approximately 3 lbs.
• Up to 75% lighter than many OE-style cast iron master cylinders
• Compatible with Wilwood combination proportioning valve kit #260-13190 and retrofit kit #220-13189
• Quantity: Sold individually
