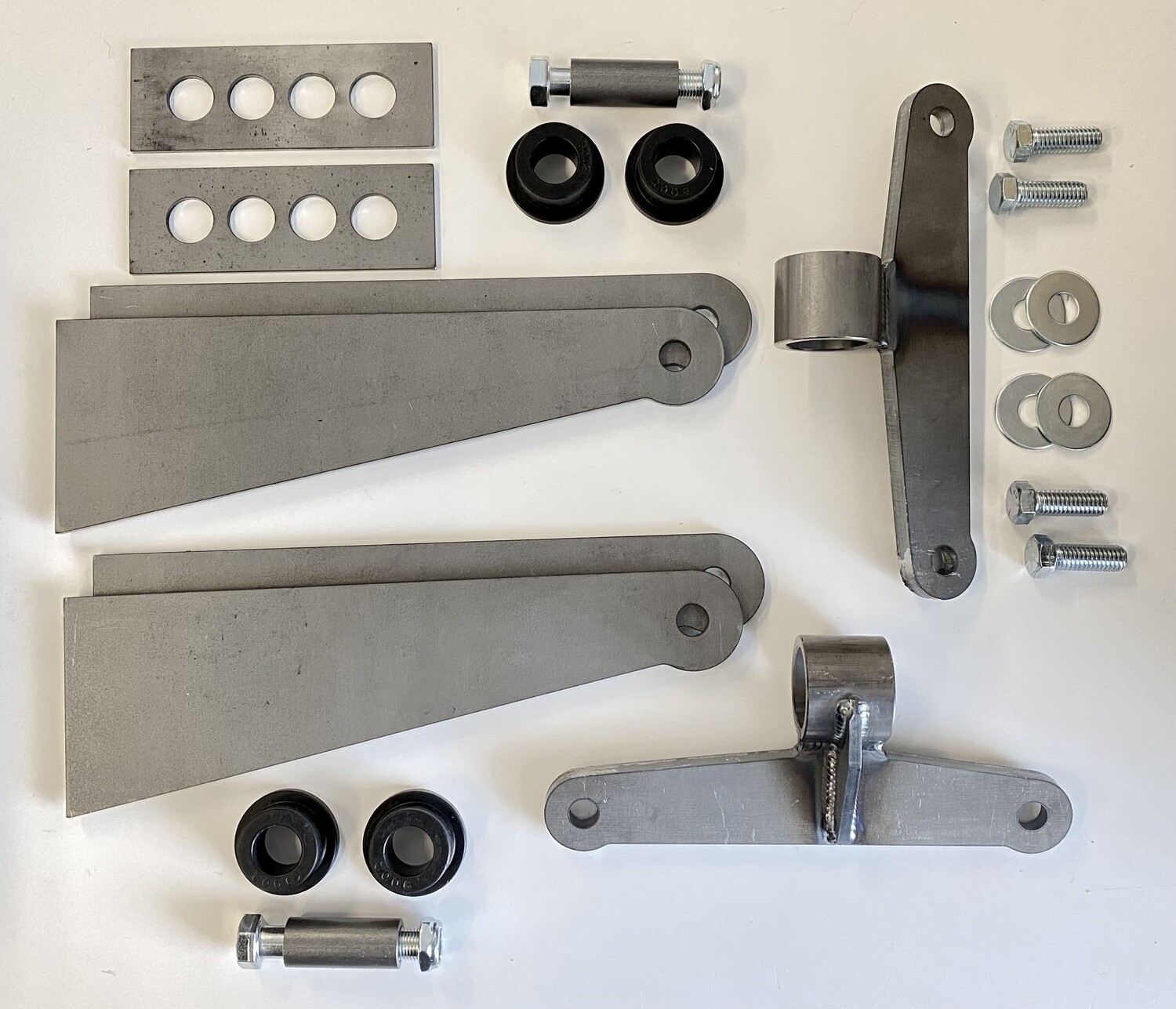

Engine Mount Kit; small block Ford, urethane bushed, Short

Ford Small Block Motor Mount Kit

This motor mount kit is designed specifically for Ford small block engines, including the 260, 289, 302, 5.0, 351W, 351C, and 400 models. Built to minimize vibrations and provide a stable engine mounting solution, this kit is ideal for custom and performance builds.

Vibration-Dampening Design:
Featuring large 1-3/4" wide urethane bushings, these mounts deliver superior insulation from engine vibrations, ensuring a smoother ride and reduced wear on mounting points.

Installation Notes:

• For blocks with three threaded mounting bosses, you may need to trim the middle boss if it protrudes beyond the outer two. Alternatively, spacers can be used to clear the center boss.
• Bolt Hole Spacing: 7/16" bolt holes are precisely spaced 7" on center to fit Ford small block engines.
• Mounting Measurements: The distance from the bushing center to the 7/16" bolt centerline is 2", and the frame plates (#990033) measure 10" from the frame edge to the 1/2" bolt center for ideal alignment on longer frames.

Boxed Frame Compatibility:
Designed for use in boxed frames, this kit includes all necessary parts and grade 5 hardware for easy installation. It also comes with filler plates for added support on the extended frame plates. You can choose between a fully TIG welded kit for quick setup or a ready-to-weld kit for customization.

This kit provides a solid, vibration-dampened mounting solution for Ford small block engines, making it an excellent choice for high-performance applications.

Follow Lowdown Hotrods as they install this motor mount kit in a ’32 Ford.
