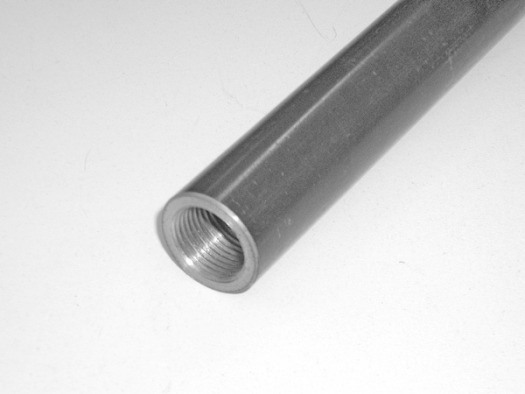

Drag Link Tube, 1928 - 40 Ford, various lengths

Drag Link Tube, 1928 - 40 Ford, various lengths

Home/Store/Steering
SKU 159266.
C$75.00
Options
In stock
1
Save this product for later
Share this product with your friends
ShareSharePin it
Drag Link Tube, 1928 - 40 Ford, various lengths
Home/Store/Steering
Product Details
Brand: Welder Series
MPN: 159266
Country/Region of Manufacture: Canada
Diameter: 7/8"
Thread: 11/16-18 RH/LH
Tubing Size: 7/8" x .156"

Connects the Pitman arm to the steering arm, for 1928-40 Fords with a solid axle.

Connects the spindle steering arms on early Ford front suspensions.

7/8″ x .156 heavy wall seamless tubing, direct threaded 11/16-18 LH/RH. Tie rod ends and jam nuts not included. Minimum and maximum center-to-center dimensions are approximate and assume jam nuts are used on both tie rod ends. Application is not limited to the Ford references shown, and might not be correct for all applications. e.g. when steering arms are modified, etc.

APPLICATIONS FOR DRAG LINKS

1928-32 Ford frame w/46” axle use #159266
1928-32 Ford frame w/48” axle use #159272
1932 Ford pinched frame w/46” axle use #159260
1932 Ford pinched frame w/47” axle use #159266
1933-34 Ford frame w/46” axle use #159272
1933-34 Ford frame w/48” axle use #159278
1935-40 Ford frame w/48” axle use #159290
1935-40 Ford frame w/49” axle use #159295

Tube Length Min. C-C Max. C-C Part #
24-1/2" 27-1/2" 29-1/4" 159245
25-1/2" 28-1/2" 30-1/4" 159255
26" 29" 30-3/4" 159260
26-5/8" 29-5/8" 31-3/8" 159266
27-1/4" 30-1/4" 32" 159272
27-7/8" 30-7/8" 32-5/8" 159278
29" 32" 33-3/4" 159290
29-1/2" 32-1/2" 34-1/4" 159295
Show More
You May Also Like
Tie Rods, Early Ford, various lengths
Tie Rods, Early Ford, various lengths
Tie Rods, Early Ford, various lengths
SKU 160402
C$90.00
Jam Nuts, various threads
Jam Nuts, various threads
Jam Nuts, various threads
SKU NJ63
C$0.75
Polished Stainless Steel Tie Rod End
Polished Stainless Steel Tie Rod End
Polished Stainless Steel Tie Rod End
SKU MP-017-SS
C$110.00

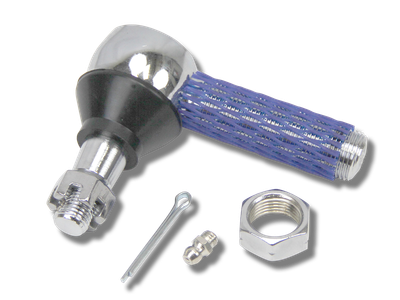

Tie Rod End – Left-Hand Thread, Chrome or Plain
Tie Rod End – Left-Hand Thread, Chrome or Plain
Tie Rod End – Left-Hand Thread, Chrome or Plain
SKU Tie Rod End LH
C$39.59

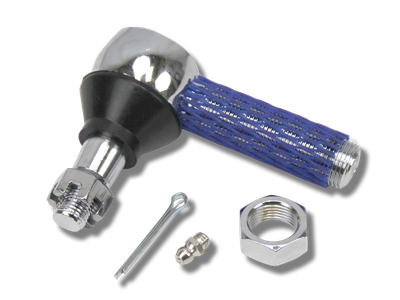

Tie Rod End – Right-Hand Thread, Chrome or Plain
