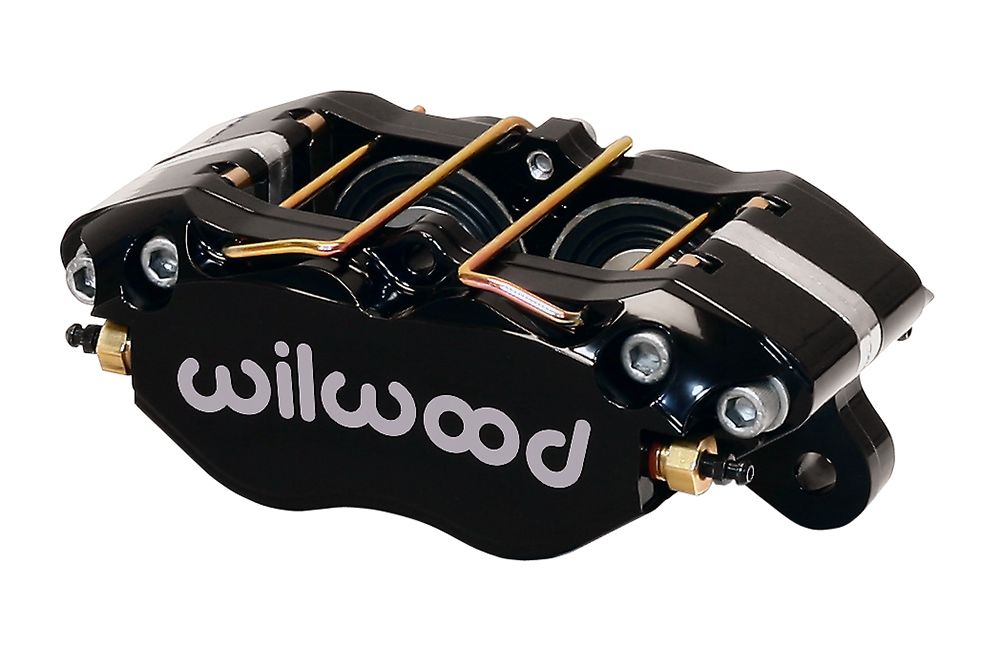

Wilwood DynaPro Dust-Boot caliper combines a strong forged aluminum body with dust-booted pistons for added protection against road and track debris. Designed for low-to-intermediate temperature applications and harsh environments, the four-piston design provides excellent clamping performance with a firm, responsive pedal feel.
• 4-piston caliper
• (4) 1.75" piston bores
• 4.80 sq. in. total piston area
• Heavy-wall aluminum pistons
• Clear anodized pistons resist corrosion and promote smooth operation
• Dust-booted piston design helps protect against dirt and debris
• High-temperature square-faced internal seals
• Forged aluminum caliper body
• Black powder coat finish
• Universal mounting – front, rear, left, or right
• Lug mount design
• 5.25" mounting bolt center
• 0.39" mounting hole size
• 2.10" mount height
• 1/8"-27 NPT inlet
• Designed for 0.75" to 0.83" thick rotors
• 0.81" nominal rotor width
• Designed for 10.00" to 13.06" diameter rotors

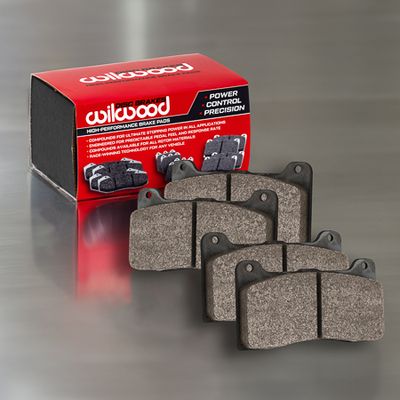

• Uses Wilwood 7812-style brake pads
• 6.36 sq. in. total pad area
• 2.1 cu. in. total pad volume
• Quick-E-Clip pad retainers allow fast pad service without removing the caliper
• Stress-flow forged construction provides excellent strength and resistance to deflection
• Designed to provide efficient clamping with reduced pedal travel
• Optional Wilwood #230-10118 bridge bolt kit available for extreme high-load applications
• Caliper weight: 3.8 lbs.
• Quantity: Sold individually, brake pads not included
