Engine Mount Kit; 4.6/5.4/Coyote/V10 Triton

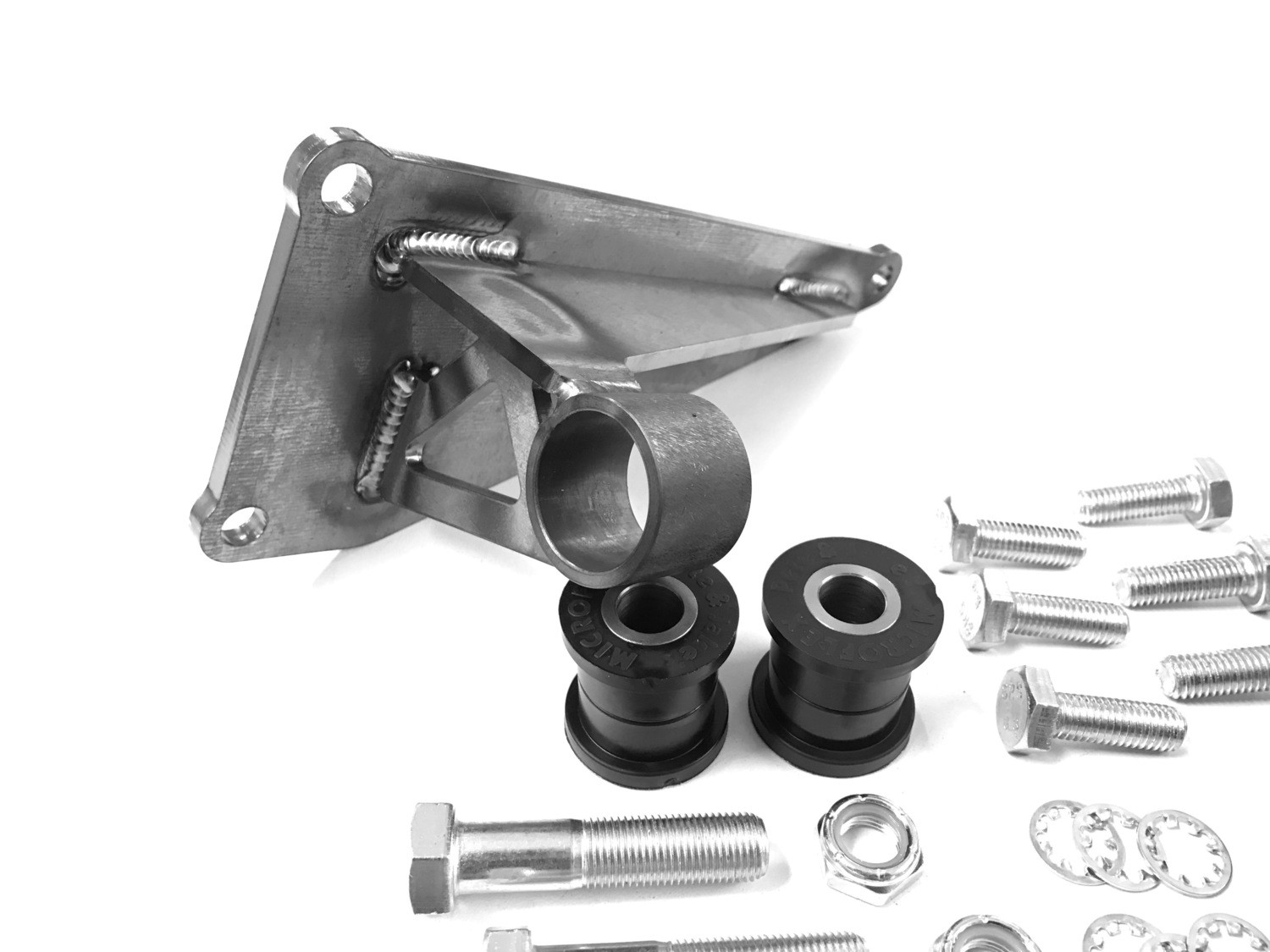

Ford 4.6L Engine Mount Kit for Versatile Applications

This Ford 4.6L engine mount kit offers flexibility and strength, making it an ideal solution for frames of varying widths—from compact T-Buckets to robust F100 pickups. The thoughtful plate design ensures ease of assembly, durability, and a clean, professional look, with gussets for added structural support. Large 1-3/4" urethane bushings are included to effectively dampen vibrations, enhancing comfort and reducing stress on mounting points.

Precision-Engineered Components

• Main Plate and Gussets: Constructed from 1/4" main plates and 3/16" gussets, the kit is designed to securely hold the engine in place even under high-performance conditions.
• Trim-to-Fit Frame Plates: The 3/16" frame plates are trim-to-fit, allowing you to adjust them precisely to your frame width once the engine location is established. Optional filler plates are available to create a third side on the frame plates for additional support, and can be easily added to your order.

Compatibility Across Ford Engines
This mount kit is designed to fit a range of engines beyond the 4.6L, including the Ford 5.4L (3-bolt mounting pattern), Ford V10 truck engines, and the Coyote engine. This versatility makes it a great choice for a variety of Ford builds, from classic restorations to high-powered custom projects.

Complete Kit for Convenience
The kit includes all zinc-plated metric bolts and lock washers for a secure, corrosion-resistant installation. It is available in both fully TIG welded and ready-to-weld options, and includes both driver and passenger side mounts for a comprehensive setup.

Engineered for Performance and Appearance
With 3" from the mounting surface to the bushing center, these mounts provide a balanced engine placement, while the gusseted design adds strength without compromising appearance. It’s a durable, attractive option for builders who demand both performance and quality in their engine mounts.

For mounting tips and additional support, check out our motor mounting tech tips or reach out with questions.
