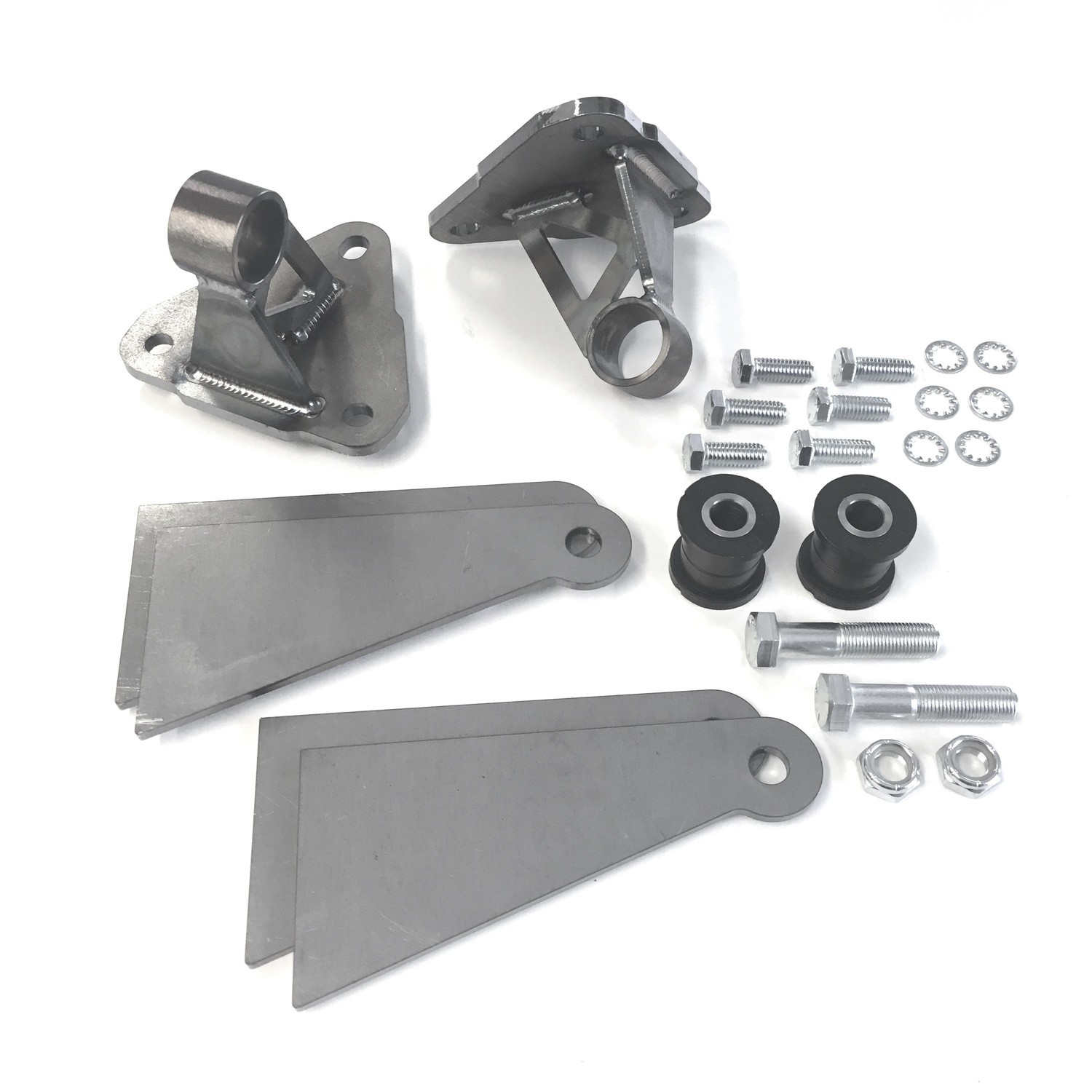

Engine Mount Kit - Chevy small or big block

Premium Small Block Chevy Engine Mount Kit

This engine mount kit is designed for builders who demand precision and quality for their Small Block Chevy (SBC) projects. Whether you’re working on a Model A or an F100 pickup, this kit offers everything you need to securely and reliably mount your engine, with flexibility for different chassis sizes. It’s compatible with all SBC blocks that feature the 3 side-mount bosses, covering engines up to the LT series (excluding some 1955/56 265 blocks without side mount bosses).

Built to Last with Superior Materials:

• Main Engine Plate: Crafted from 1/4” mild steel, laser-cut and pickled & oiled for a smooth, rust-resistant surface that’s ready to weld. This high-strength plate provides a solid foundation for your engine mount.
• Frame Plates and Gussets: The included frame plates, made from 3/16” thick mild steel, are extra long, allowing you to trim them to fit nearly any frame width or design. The gussets, also 3/16” thick, add structural support, ensuring your mounts stay solid under stress.

Custom Fit and Precision:

• The design offers 3" from the engine side of the plate to the urethane bushing center, with 6" extending to the end of the trim-to-fit frame plates. For larger applications, 10” frame plates are also available. Check out the video above for an easy way to trim the frame plates.
• The mounting holes are precisely spaced, with a slotted 3/8" hole centered at 3-1/8" from the round 3/8" hole, and the round holes themselves are spaced 3-1/2" center to center for a perfect alignment on the SBC blocks.

Premium Components Included:

• Energy Suspension Urethane Bushings: This kit comes equipped with high-quality 1-3/4" wide Energy Suspension polyurethane bushings, proudly made in the USA. These bushings offer superior vibration dampening and long-lasting durability.
• Grade 5 Zinc-Plated Hardware: All necessary hardware is included, featuring Grade 5 zinc-plated bolts that are corrosion-resistant, ensuring your installation is reliable and strong for years to come.

Flexible Assembly Options:

• The kit is available in two configurations: artfully TIG welded for those seeking a ready-to-install solution, or as a ready-to-weld kit for builders who want to take on the welding themselves. The kit is designed to be assembled without special fixtures, making it easy for experienced fabricators. The ready-to-weld version comes with a clever fixture card that will help with the assembly.

This engine mount kit combines high-quality materials, precision engineering, and flexibility, making it a perfect choice for custom builds and restorations alike. Trust Welder Series to deliver superior products, proudly made in Canada, that meet the needs of professional builders and hobbyists alike.
