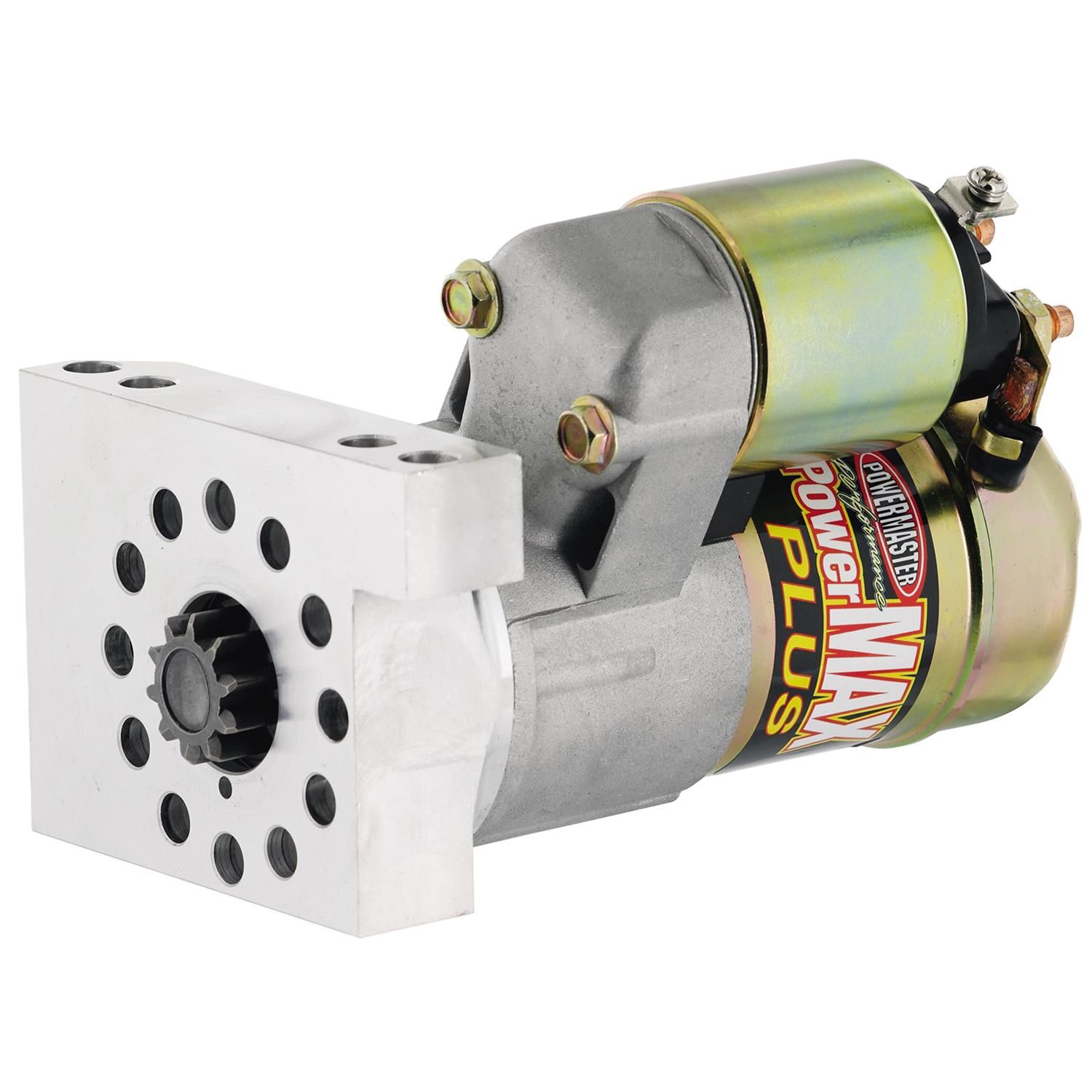

PowerMax Starter – Mini Inline – Chevy L6 / V8

High-torque mini starter designed for Chevrolet inline-six and V8 engines. This PowerMax starter uses a gear-reduction drive to deliver strong, reliable cranking performance while maintaining a compact inline design for improved clearance around oil pans, headers, and chassis components.

Producing approximately 180 lb-ft of torque with a 6.10:1 gear reduction, this starter is suitable for engines with compression ratios up to 11.0:1. An adjustable aluminum mounting block allows the starter to be clocked in multiple positions for optimal fitment. If a stock starter clears the oil pan, this starter typically will as well, and many applications will also clear kicked-out oil pans.

The starter is supplied with mounting bolts and shims and includes a starter dyno report.

• Mini gear-reduction starter
• Inline mounting configuration
• Fits Chevrolet inline-six and V8 engines
• Compatible with 153- and 168-tooth flywheels / flexplates
• Mini Hitachi-style design
• Gear reduction ratio: 6.10:1
• Approximate torque output: 180 lb-ft
• Adjustable aluminum mounting block
• Standard rotation
• Gold finish
• Maximum recommended compression ratio: 11.0:1
• Not remanufactured
• Mounting bolts and shims included
• Sold individually

Points-style ignition systems require Powermaster diode #600 installed from the starter to the positive side of the ignition coil.

Starter heat wraps are not recommended, as excessive heat retention can cause starter damage.
